Ss Marine Filter Ship Lubrication Hydraulic Oil System For Automatic Back Flushing Filters

Marine filter oil candle filter ship lubrication hydraulic oil system for automatic back-flushing filters

Product Description:

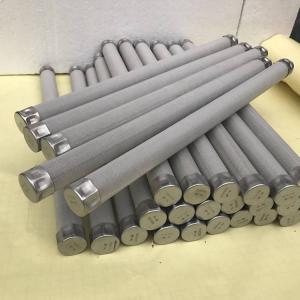

The melt filter element is named candle filter because it is shaped like a single candle.candle filter is mainly used for high temperature, high pressure, high viscosity polymer, polyester melt filtration.The filter upper and lower end caps are made of stainless steel (316L) to ensure corrosion resistance. The filter medium is made of stainless steel fiber sintered felt and stainless steel wire braided mesh is folded and corrugated. The dimensions are small and the filter area is large. It can be cleaned repeatedly.
Candle filter product features:
1. Low resistance pressure loss, high strength
2. Repeatable cleaning, long service life
3. The filter element and the fixed plate are bolted or screwed, and the installation, disassembly and cleaning are convenient.
4. Strong corrosion resistance, wide operating temperature range, no material detachment
5. Large filter area, large flow rate, high porosity, good permeability, strong dirt holding capacity, strong reusability
6. The candle filter is mainly used for oil filtration. It is composed of multiple filter elements and a magnetic filter element. With the same size, it effectively increases the filter area.

Specification:

is mainly used to filter particulate contaminants, filtration of solid and colloidal solids in working medium, filtration for diesel systems, it's an important part of the ship's filter.

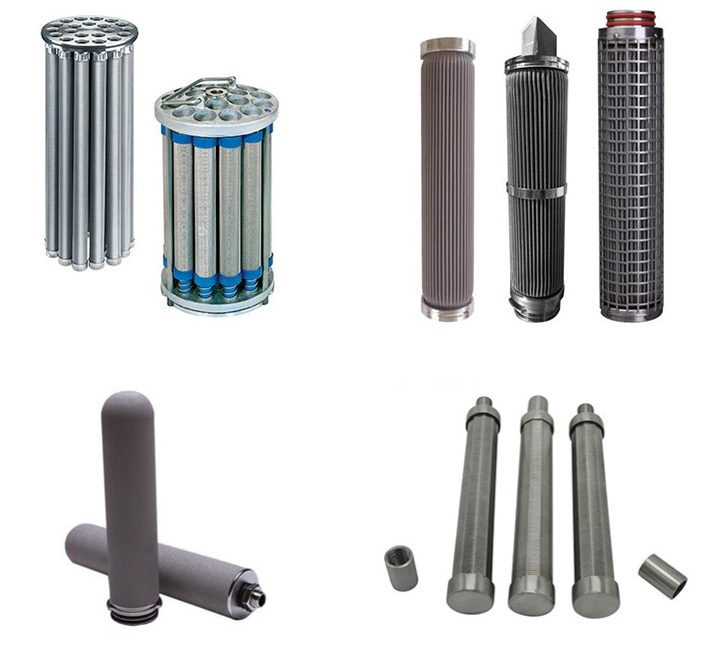

Candle filter element is made of stainless steel wire mesh, the products we produce are mainly composed of four parts.:
1. Wedge wire screen(support body)
2. Stainless steel wire mesh(filter layer)
3. Nut
4. Cap

As the filtration progresses, the cake layer is continuously thickened and the filtration resistance is continuously increased. When the set pressure difference is reached, the filter element needs to be backwash. First close the liquid inlet and outlet, and introduce compressed gas into the tank. Filter out the residual liquid in the filter tank. When backwashing, a compressed gas inflating filter cloth is introduced at the outlet of the filter, make the impurities in the intercepted filter cake and filter cloth gap are removed, discharged from the lower discharge port.

1340125 134009 1340100 1340079 1340098
1360014 1450033 1340043 1340442 1450025
1450600 1450023 1442723 7608089
7670117 7605706 1112387 550001

Application:
1. Mainly used to metallurgy , chemical industry , machinofacture , papermaking
2. Raw oil , fuel oil , diesel oil , kerosene , gasoline ,etc . filtering
3. Lubricating oil , hydraulic oil ,machine oil , gear oil etc. filtering
4. Raw water , sewage , plain water , reclaimed etc. clear filtering.

We are one proressional industrial filter cartridges and elements manufacturer with over 20 years experience.

Main products:

• Dust filters、dust cartridges、powder filters、sterilization filters、odor eliminating filters deodorization filter and dust collection filters used in for industrial gases/gas、industrial dust、coating/painting equipment and environmental protection equipment.
• Filter elements for industrial oil ,fluid filtration,hydraulic and lubrication system, high precision oil filter equipment. Make non-standard filter elements, pipeline filter elements, imported filter cartridges localized transformation.
• Air filter cartridges for air compressors, generator sets, fans, etc., oil filter cartridges, oil and gas separation cartridges, oil filter cartridges, diesel filter cartridges and various filters.
• Air filter cartridges for large machine groups, gas turbines and ships. Engine oil filter, oil-water separator filter, oil separator filter, etc.
• Non-standard filter design, development and production of various machinery equipment.
• Filter cartridges for high-efficiency and mufti-function high-precision oil filter equipment and other various oil filter equipment.
• Primary, medium and high efficiency filters for HVAC system, fresh air replenishing machines, etc.
• Gas filter of the gas pipeline city gate stations ,pipeline transmission and distribution coal gas filters.
• Oil-water separation filters for Large machine tools、Universal lathe and CNC lathes.
• Oil filter elements,dust filters and gas purification filters of various piping systems.

Our company has a complete process, such as owning the machining, stamping, surface treatment, filter assembly and other workshops, technical and quality inspection and other quality management departments and advanced production lines, relying on strong technical force and high-quality skilled workers, with German, American HV, Japan TORAY companies' high-quality filter paper and other imported filter materials, with exquisite technology, advanced equipment, improved testing methods, advanced information management system to meet the needs of users of various filter cartridges.

Our products are now widely used in the field of metallurgy, petroleum, chemicals, electricity, coal, mining, pharmaceuticals, shipbuilding, food, construction machinery,energy and other industries.
