    SL400 Gang Type Horizontal Turning Machine High Accuracy Hydraulic Collets

    Ask Lasest Price
    Brand Name : CNC Hardware
    Model Number : SL300
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 3 set per month
    Delivery Time : 14 work days
    Price : USD26600
    • Product Details
    • Company Profile

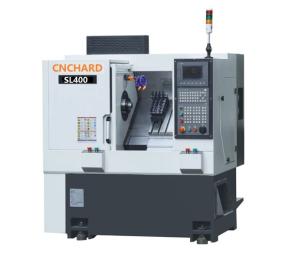

    SL400 Gang Type Horizontal Turning Machine High Accuracy Hydraulic Collets

    SL400 Horizontal Turning CNC Machine Gang Type Linear Guideway Slant Bed High Speed High accuracy Cheap cost


    Standard Features

    • Hydraulic collets
    • Gang Type Tooling
    • Ergonomic Operator Panel Design
    • Automatic Lubrication System
    • Automatic Coolant System
    • Built-In Safety Features

    Optional Features

    • Different Chucks and collets
    • Updated Control Systems
    • Live Tooling
    • Bar Feeder

    Specifications

    UnitSL400

    Capacity


    Chuck/collet

    Bed type/ guideway

    Max. swing dia. Over bed

    Max. length of workpiece

    Max. swing dia. Over slide


    type


    mm

    mm

    mm

    Hydraulic collet

    *Hydraulic collet, *chuck6”,8"

    Slant/LM

    Φ400

    400, 210(chuck) *230(collet)

    Φ120


    Spindle

    Spindle bore

    Max. dia. Of through hole

    Spindle nose


    Spindle speed


    Spindle motor power

    mmΦ48*Φ55*Φ62
    mmΦ40*Φ46*Φ52
    A2-5* A2-5*A2-6

    rpm

    3000*2500*2000
    *4500*4000*3500
    *5000*4000
    KW3.7/5.5, *5.5/7/5
    AxisX/Z travelmm350/300
    X/Z rapid traversemm/min25/15, *25/25

    Structures


    Incilined degree

    Gang type
    45°
    Guidway TypeNo.LM

    Others

    Power capacitykVA12
    Dimensions (LxWxH)mm2000x1300x1750
    Weight (about)Kg2400
    Note: *means optional
