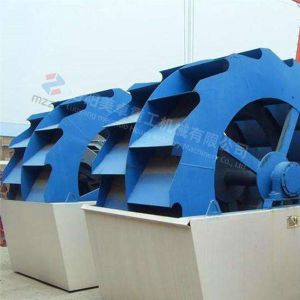

About the XSD series sand washing machine
The electric motor runs slowly with the wheel after decelerated by
the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder,
rolls with the wheel, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take
away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished.
Structure
Tech specification
| Model | Wheel Size (mm) | Max feed size (mm) | Power (KW) | Weight (t) | Capacity (t/h) | Overall dimension (mm) |
| XSD2610 | Φ2600×1000 | 10 | 5.5/7.5 | 2.6 | 20-50 | 3255×1982×2690 |
| XSD2816 | Φ2800×1600 | 10 | 11/15 | 4.2 | 30-60 | 3540×3000×2880 |
| XSD3016 | Φ3000×1600 | 10 | 15/20 | 5.5 | 50-100 | 3845×3000×3080 |
| XSD3220 | Φ3000×2000 | 10 | 15/20 | 8.3 | 60-150 | 4150×3500×3300 |
| XSD3620 | Φ3000×2000 | 10 | 15/20 | 9.8 | 80-150 | 4500×3500×3700 |
Application
Bucket sand washer is a kind of wheel washing equipment, and can
clean and separate the dust and powder from the sand. Sand washing
machine are mainly used in building site, gravel plant, concrete
dam building site of hydro power station, etc..
Main parts
