P8 Outdoor SMD LED Display

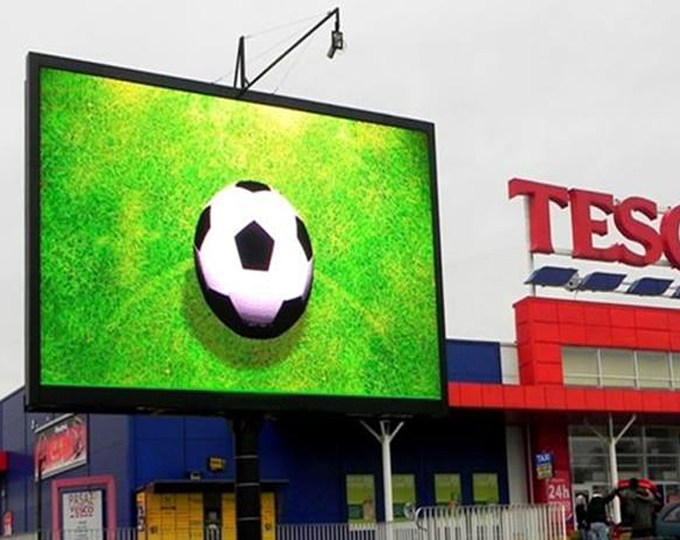

This cabinet of SMD outdoor module front maintain led display can
be make up large advertising led wall with great advertising
effect. It's suitable for stage, bank, promotion, exhibition,
station, KTV, stadium, airport and all outdoor places.
Product Features
1.General description
The display panel is use standard module , the entire screen body
is composed of identical unit modules, can be interchanged. The
service life is more than ten years with normal use.
2.Switching power supply and power cord
The switching power supply with fans is 5v/40A and 5V/50A, adopts
the well-known brand of industry level and have passed the 3C
certification.
All power cords use well-branded full-core copper wire passed 3C
certification.
3.High temperature heat treatment
The LED driver power supply uses a high-efficiency dedicated power
supply,different voltage outputs according to different LED lamp
points, minimize (non-luminous heat) the heat generated by the
drive circuit.
LED is a kind of power-consuming material. It produces heat when it
shines. The accumulation of heat will bring the screen and
electronic components to a high temperature.
heat is inevitable when LED is working. the heat-dissipation
measures must be carefully considered for large-screen systems,to
ensure the LED warranty, brightness, color uniformity, system
average failure rate and other major technical indicators.
4.Moisture proof
turn off the heat sink makes the display a relatively sealed
cabinet.
It is also required to use the ship industry anti-corrosion
technology to deal with.
5.Cold protection
It is required to use anti-freeze epoxy resin, anti-frozen circuit
board, and the board adopts internationally renowned brands and
power supply that can work in low temperature (-20 degree)
environment.
6.Anti-glare treatment
the contrast and color purity of the display be improved
effectively because the mask on the front of the display uses glare
and sub-black treatment.
7.Product Maintenance
It adopts front-side magnetic installation, which is simple and
convenient, and can realize single-point maintenance. It also can
be flexibly maintained by only one person, which greatly reduces
the maintenance cost during repair.
outdoor full-color P6 LED display |
Parameter Name | Performance indicators |
Basic | LED Encapsulation: | SMD3535 |
parameter | Physical center spacing: | 8 mm |
| Physical density: | 27777 / ㎡ |
| Luminescent spot color: | 1 r1g1b |
| Color display: | 16777216 |
| Module size: | 320mm * 160 mm |
| Module resolution: | 40(W) * 20 (H) |
| Color temperature (K) : | Adjustable. 3200-9300 |
| White balance brightness: | Greater than 7000cd/m2 (brightness adjustable) |
Processing | Gray level: | RGB each level 256 |
performance | Gray scale changing frequency: | 60 or higher (frame)/SEC. |
| Scanning frequency: | > 1200 hz/SEC. |
| Driving mode: | Constant current drive |
| Scanning mode: | 1/8 scanning |
| Interface definition: | HUB75 |
structural | Regular cabinet size: | 960mm * 960mm (united sink technology die casting aluminum) |
parameters | Conventional box resolution: | 120* 120 |
| Box flatness: | ≤0.1mm |
| Box thickness: | ≤85mm |
| Maintenance mode: | Before and after the maintenance |
Electrical | Peak power consumption: | 560w / ㎡ |
parameters | Average power consumption: | Normal use of power 188w / ㎡ (actual) |
| Power supply requirements: | AC220V + (15%), 47-64 hz |
| Power switch: | Automatic switch |
| Security features: | GB4943 / EN60950 |
Control | Control host (CPU) : | Pentium4 or above P4 or above |
parameters | Operating system: | Above WIN98/2000 / NT/XP |
| Control mode: | Synchronize with the computer VGA |
| Graphics card requirements: | DVI graphics |
| Network card requirements: | Gigabit nics |
| Display mode: | 1920 x 1280 |
| Control mode: | Synchronous or asynchronous |
| Control distance: | < 100mb (no relay);After > 100m, the relay amplifier |
| or optical fiber communication is adopted |
whole screen | Life of LED theory: | > 100000 hours |
parameters | Best view: | 6m to 100 m |
| Blind spot rate: | Half a million |
| Visual level (W) : | P 160 ° |
| Visual vertical Angle (H) : | P 160 ° |
| Storage environment temperature: | - 35 ℃ ~ + 85 ℃ |
| Storage environment humidity: | 10% 50% without condensation |
| Working environment temperature: | - 20 ℃ ~ 60 ℃; |
| Work environment humidity: | 10% - 85%. |
