high performance 2D barcode scanner engine 1m pixel for PDA

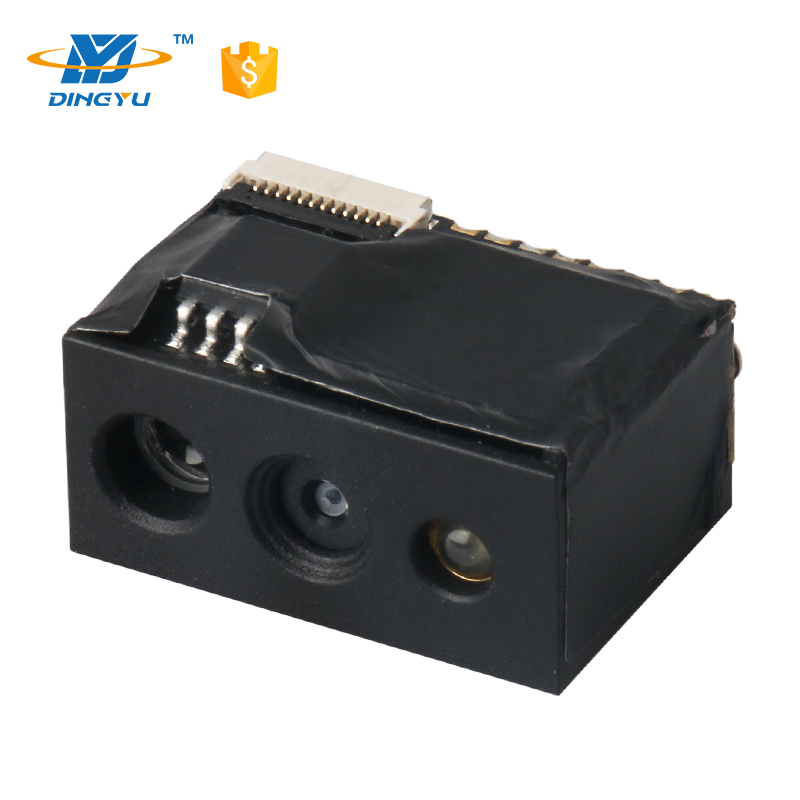

DE2290 is a high-performance 300 thousand pixel embedded 2D image
module with advanced CMOS image recognition technology, intelligent
image recognition system.
With excellent reading performance, you can easily read barcodes on
media such as paper, merchandise, and screen.
The integrated compact design allows for easy insertion into a wide
range of equipment.
Widely used in various types of self-service machines, price
checking machines, lockers,etc.
Features
1. Small size, self-contained fixing holes for easy integration
into other equipment.
2. Optional multiple interfaces {USB (KBW, COM), TTL}, suitable for
different application.
3. Good reading performance, easy to read both screen and paper
barcodes.
4. High-definition camera, can read smaller and complicated 1D 2D
barcodes.
5. Support multiple working modes (manual, continuous, Auto sense,
command control).
Parameter
| Weight | 3.4g(without cable) |
| Size | 21.38mm L × 15.84mm W × 11.58mm H |
| Interface | USB,USB-com(driver is needed),TTL (USB protocol:Full Speed ,USB 2.0) |
| Light Source | lighting: white LED(Automatically adjust brightness according to
distance) Aiming; Green LED,wavelength coverage 525nm |
| CMOS | 640×480 CMOS |
| CUP | ARM32-bit |
| startup time | 750ms |
| Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Depth of field | 3mil:55~100mm,13mil:55~350mm |
| Scan mode | Trigger mode,Auto sense mode |
| prompting mode | LED indicating lamp,buzzer |
| Reading angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| visual angle | Horizontal 40°× Vertical 30° |
| Motion tolerance | 25cm/s |
| Power input | 3.5V~5V (DC5V is recommendation) standby current:47mA,Decoded
average current:180mA |
| Print contrast | 25%PCS |
| Ambient Light | 70000Lux |
| Symbologies | 1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of
5 Industrial 25 code,Matrix 2 of
5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1
databar,GS1 databar limited,GS1 databar
expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| operating temperature | -20℃ to 55℃ |
| storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125RPM |
Pictures
FAQ:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode
scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend
machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested
1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing.
Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box,
user manual. And we have our own technical team to support ODM
service.
