HD Full Color Creative Led Display P4 SMD Movies Small Video Wall
4mm Pixel Pitch

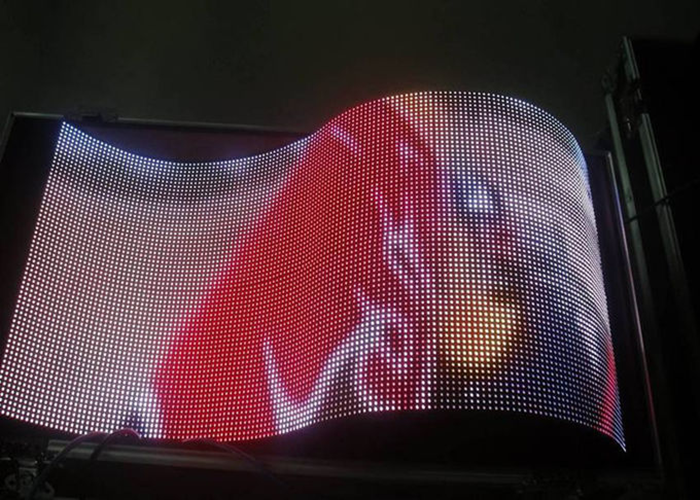

Our Flexible LED Screens are extremely well designed, rugged,
reliable, and environmentally friendly products. They come in a
comprehensive range and variety of sizes, offering sizable budget
savings. The LED display screens and LED advertising bill boards
also include features such as, temperature display and clock. They
are manufactured from superior quality, raw material that can
really enhance the durability of products. Our LED screens can be
clearly seen from hundreds of meters even during the day time and
are so bright that even sunlight cannot overrule them.
>> Features
1. SMD3-in-1 technology are used for indoor LED display.
2. Wide view angle: 140 in horizonal and 140 in vertical.
3. Special design and advanced SMT technology improves the heat
dissipation
4. With high refresh rate controller, guarantee that no scan line
when taking photos.

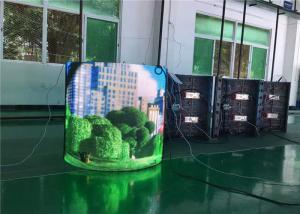

5. Regular shape and special shape (such as curve, round) can be
designed.
>> Parameter
| Technical DataModel | PH4 |
| Pixel Pitch | 4mm |
| Physical Density(pixels/m²) | 62500 |
| LED Shape & Size | SMD 3 in 1 |
| LED Arrangement | 1R1G1B |
| Module Size(mm) | 128×128 |
| Module Resolution | 32*32 |
| Drive Mode | Dynamic 1/8 Duty Constant Current |
| Brightness | ≥1500cd/m² |
| Contrast(cd/m²) | ≥2000:1 |
| View Angle, 50% Brightness | 140°/140° |
| Minimum View Distance | 4m |
| Grey Scale | 10bits/1024levels |
| Color Capacity | 1.07billion |
| Maximum Power Consumption | 860W/m² |
| Ave.Power Consumption | 280W/m² |
| Operation Power Source | AC90-260V 50-60HZ |
| Frame Frequency | 60-85HZ |
| Refresh Rate | 240-1000HZ |
| Brightness Adjustment | 0-100% 8 levels automatic |
| Gamma Correction | -5.0-5.0 |
| Correction Scale Level | 16bits |
| Color Temperature | 5000-9300K |
| Brightness Correction | Pixels, Module, Cabinet Correction |
| Input Source Support | Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km |
| Operating Temperature | -40°C - 65°C |
| Operating Humidity | 10-90%RH |
| Operating Life Span | 100,000Hours |
| MTBF | 5000 Hours |
| Protection Ratings | IP31 |
| Out of Control Rate | 0.01% |
>> Advantages
1. 8 years' production experience, have passed certifications
CE/ROHS/FCC/ISO9001/Supplier assessment.
2. Wide viewing angle, perfect and impressive viewing effect
3. High brightness
4. Economic and practical
5. Easy installation and using: easy and simple installation
interface and user friendly software
