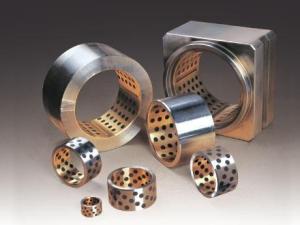

    Graphite Steel Bushing Sleeve Roll Machine Support Use Wear Resistant

    Ask Lasest Price
    Brand Name : IFAGb
    Model Number : 40*50*50
    Certification : China
    Price : Negotiation
    Payment Terms : T/T, L/C, PayPal
    Supply Ability : 1000 Piece/Pieces per Week
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    Graphite Steel Bushing Sleeve Roll Machine Support Use Wear Resistant

    graphite steel bushing,40*50*50,60*75*60,hardened bearing steel, grey black,etc.


    Material:Hardened Bearing Steel
    Product Name:Graphite Steel Bushing
    Bearing Capacity:250N/mm2
    Application:Roll Machine Support
    Color:Grey Black
    Base Material:GCr15
    Basic Hardness:HB58~60
    Use PV Value:2.5N/mm2*m/s

    product description:

    Graphite steel bushingis a reinforced product with high compression resistance. It can discharge lubricating particles during operation and create a layer of diaphragm between the shaft and the sleeve, which is more resistant to bite than single oil lubrication. The advantages are particularly adapted to the support of the hoisting machinery.


    Recommended use:

    For example: roll machine support, crane support, but not suitable for use in water or acid and alkali.


    Technical Parameters:

    Base material: GCr15

    Bearing capacity: 250N/mm2

    Basic hardness: HB58~60

    Friction coefficient μ: <0.17

    Higher sliding speed: 0.1m/s

    Higher use temperature: 350 ° C

    Use PV value: 2.5N/mm2*m/s

    Quality Graphite Steel Bushing Sleeve Roll Machine Support Use Wear Resistant for sale
