    Powerful Computerised Automated Lathe Machine Floor Type High Accuracy

    Ask Lasest Price
    Brand Name : NTM or customized lathe is also available
    Model Number : CK64125 CK64160 CK64200 CK64250 CK64300
    Certification : ISO9001, BV, CE, EAC etc
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200 sets/ year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

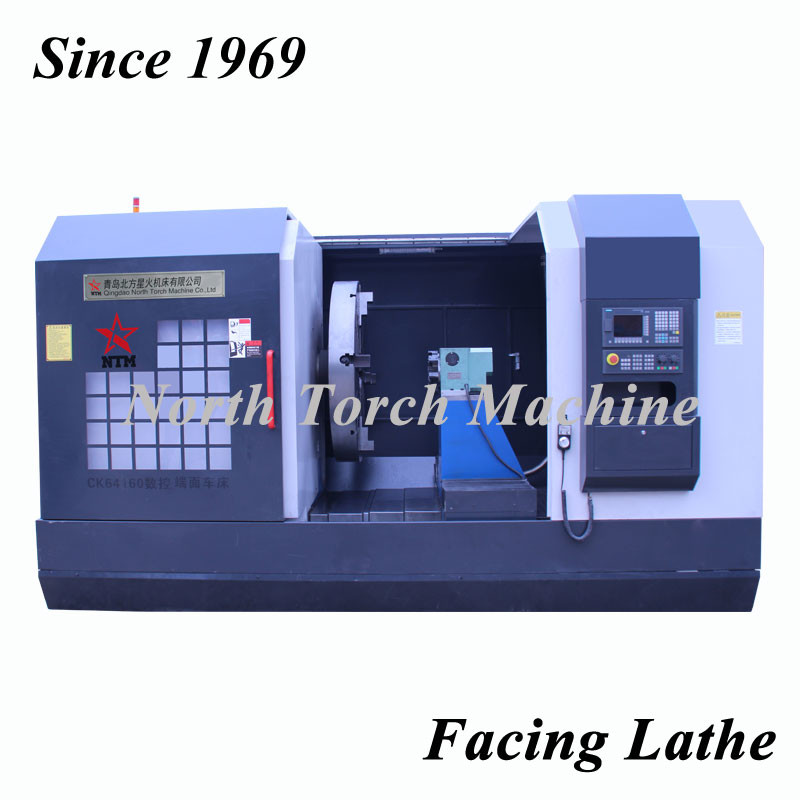

    Powerful Computerised Automated Lathe Machine Floor Type High Accuracy

    Floor Type Facing in Lathe ,Flange Lathe with big machine head-stock
    For Turning Flange, Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
    Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.


    More than 50 years' experience in machinery industry since 1960s.

    Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)

    Base adopts triangular guide design

    Reasonable structure

    High performance with low cost


    We have our own foundry which can control the quality strictly.


    All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.

    Maximize Customer's Profitability under the minimum invest cost compared with other competitors.

    We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.


    Application & Features:


    1. The base guide of Facing in lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings.

    2.This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation.

    3.This is a professional Flange lathe machine used for turning drilling flange, neutral parts ,propeller with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.




    2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Horizontal Lathe


    Specifications of Facing in Lathe
    NameUnitCK64125CK64160CK61200CK64250CK64300
    Swing Diameter over Machine Bedmmφ1250mmφ1600mmφ2000mmφ2500mmφ3000
    Chuck Diametermmφ1000mmφ1250mmφ1600mmφ2000mmφ2500mm
    Chuck-jaw seat lengthmmEmbeddedEmbedded500mm500mm500mm
    Work-piece Lengthmm500mm750mm750mm1000mm1000mm
    Work-piece WeightT2T2T3T3T5T
    Spindle Diametermmφ190mmφ200mmφ220mmφ220mmφ260mm
    Spindle Speedr/min10-200 r/min4-160 r/min4-160 r/min3-106 r/min3-106 r/min
    X Axis Strokemm625mm800mm`1000mm1250mm1500mm
    Z Axis Strokemm500mm750mm1000mm1000mm1000mm
    X Axis Rapid Feed Speedmm/min2500mm/min2500mm/min2500mm/min2000mm/min2000mm/min
    Z Axis Rapid Feed Speedmm/min2000mm/min2000mm/min2000mm/min2000mm/min2000mm/min
    Cutting Tool Carriage Size 240*240280*280300*300300*300300*300
    Cutting Tool Shank Sizemm32*32mm40*40mm40*40mm40*40mm40*40mm
    Feed Control Servo MotorServo MotorServo MotorServo MotorServo Motor
    Motor Parameters
    Main Motor PowerKW15KW18.5KW18.5KW22KW37KW
    Feed Motor of Z AxisKW2.3KW2.3KW2.3KW2.3KW2.3KW
    Feed Motor of X AxisKW2.3KW5.5KW5.5KW5.5KW5.5KW
    Lubrication Motor PowerKW0.37KW0.37KW0.37KW0.55KW0.55KW
    Machine Accuracy
    Cylindricitymm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm
    Flatnessmm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm
    RoughnessRaRa3.2Ra3.2Ra3.2Ra3.2Ra3.2
    Machine Dimensionsmm3180*1910*18703940*1980*19004190*2670*24504250*2770*28004400*3300*3300
    Machine WeightT6T9.5T11T12.5T15T

    3. After-sale Service


    We have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.


    We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.


    For the machine easy-damaged parts, we can provide immediately to prevent customer's halt production . For each lathe machine, we have one complete 3D & 2D drawings in dgw version.


    For more details, please feel free to contact us. Thanks!
