    High Hardness Open Die Forging Products Sleeve Bushing Anti Corrosion

    Ask Lasest Price
    Brand Name : VANFORGE
    Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
    Payment Terms : L/C, T/T
    Supply Ability : 5000 tons per month
    Delivery Time : 45 days
    Price : Negotiable
    • Product Details
    • Company Profile

    High Hardness Open Die Forging Products Sleeve Bushing Anti Corrosion

    Stainless steel alloy steel open die forgings forged sleeve bushing


    Vanforge is a supplier of open die forgings, seamless rolled rings, and contoured rolled rings up to 200"/5080mm outside diameter. Forging shapes include discs, hubs, blocks, shafts (including step shafts or with flanges), sleeves, cylinders, flats, hexes, rounds, plate, and some custom shapes. Forgings can be produced as finished size, finished size rough machined, forged size, forged size rough machined, as forged size, or as forged size with allowance to finish to your finish size. Seamless rolled rings and contoured rings are produced to save on material and machining costs.


    Process: Open die forging, seamless ring rolling

    Shape: Sleeve, bushing, tube, cylinder, shaft, gear blank, wheel, block, ring

    Material: Alloy steel; Aluminum; Copper base; Stainless steel; Titanium; Super alloys; Nickel alloys; Carbon steel

    Secondary process: Machining; Heat treatment; Stress relieving; Finishing; Painting; Cutting

    Services: CAD, CAM support, testing and inspection


    Quality assurance:

    Destructive tests

    Chemical analysis / PMI (positive material identification)

    Tensile test at room temperature or hot tensile tests

    Hardness test

    Impact test until -196 C

    Metallography

    Corrosion test

    Dimensional and visual control

    Ultrasonic test

    Magnetic particle test

    Dye penetrant test


    Material

    Non alloy steel / low alloy carbon steel

    ASTM

    A105

    LF2

    F60

    F65

    A266

    A765


    EN


    S355JR/P245GH


    C45

    Steels for low temperature applications

    ASTM

    LF3

    A522 TP 1 (LN90)

    EN


    Low alloy steels resistant to creep

    ASTM

    F5

    F5a

    F91

    F11

    F12

    F22

    EN


    X10CrMoVNb9-1

    13CrMo4-5


    11CrMo9-10

    Case-hardening steels

    ASTM


    EN

    17NiCrMo6-4

    18CrNiMo7-6

    16NiCrMo12

    16NiCr11

    Hardening and tempering steels

    ASTM


    4140

    4340

    4130


    B16

    A372 Gr.F Cl.70

    EN

    30CrNiMo8

    30NiCrMo12

    34CrNiMo6

    36CrNiMo4

    39NiCrMo3

    36NiCrMo16

    42CrMo4

    40NiCrMo7

    30CrMo4

    21CrMoV5-7

    40CrMoV4-6


    Nitriding steels

    ASTM


    EN

    41CrAlMo7 (LK3)

    Martensitic stainless steels

    ASTM

    410/F6a

    F6NM

    420

    422

    422W (616)

    431

    EN

    X12Cr13

    X3CrNiMo13-4

    X20Cr13

    X20CrMoV12-1


    X17CrNi16-2

    X4CrNiMo16-5-1 (1.4418)

    X4CrNi16.4

    Austenitic stainless steels

    ASTM

    F304/F304L/F304H

    F316/F316L/F316H

    F316Ti

    F321/F321H

    F347H

    EN


    Austenitic stainless steels resistant to corrosion (urea grade)

    ASTM

    F316 UG

    F310MoLN

    EN

    X2CrNiMo18-14-3

    X1CrNiMoN25-22-2

    Super austenitic stainless steels

    ASTM

    A182 F44

    EN

    X1CrNiMoCuN20-18-7

    Austenitic ferritic stainless steels (duplex, super duplex)

    ASTM

    F51

    F53

    F55

    F60

    EN

    X3CrNiMoN22-5-3

    X2CrNiMoN25-7-4

    X2CrNiMoCuWN25-7-4

    Precipitation hardening stainless steels

    ASTM

    A705 GR.630 (17-4PH)

    EN

    X5CrNiCuNb16-4

    Bearing steels

    ASTM


    EN

    100Cr6

    Nickel alloys

    UNS

    N06625

    N06600

    N08825

    N08800

    N04400

    N06690

    N07718

    N09925

    N05500

    N07750


    Weight of single forged piece: 50 kg (by forging hammer) – 50,000 kg (by hydraulic forging press)

    Outside diameter of seamless rolling ring: 500 mm – 5080 mm


    45MN forging press


    Forging hammers

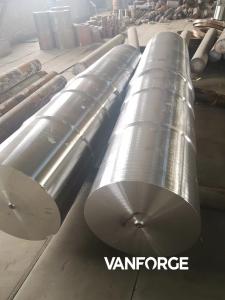

    Finished products


    Quality assurance
