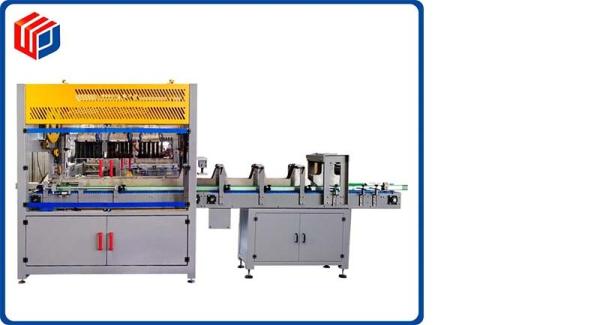

Automatic double chainwheel pick and place case / carton packer
High Speed Case Packer for plastic bottle
This fully automated carton box packing machine , accurate
positioning of fixtures and products to ensure 100% taking and
encasing of the products,it is able to complete all the procedures
in case erecting, case packing and case sealing all at once
including flat carton fetching, case forming, products filling-in
and automatic sealing as well as full carton discharge. It makes
the process much simpler and more continuous than manual and
semi-automatic carton opening, loading and sealing. For carton
sealing, hot melt adhesive tape is used to make the process
healthier and the finished carton look much tidier and more
beautiful.
Description:
- Double chainwheels structure;
- Grippers move following the reciprocating movement of the
chainwheels;
- 3 sets~5 sets grippers are selected according to output, and
packing speed can reach 18~30 cases/min, more grippers are
available upon request;
- Touch screen PLC, beacon alarm for unavailability of bottles, and
safety protection device for "no bottles no packing";
- Innovative design, compact footprint;
- Suitable for kinds of products, like PET bottle, PP bottle, all
kinds of plastic bottle, glass bottle, irregular bottle, can, etc.
Operating Principle:
1) Bottle/package feeding: Bottles/packages are conveyed onto
infeed conveyor, then through guiding plate to vibrating station to
prevent blocking, after which the bottles or packages will be
separated into different lanes as per customer's requirement by the
separating plates.
2) Flat carton magazine: It can store approximately 200 PCS flat
carton. The flat cartons will be taken one by one by a mechanical
arm with vacuum sucking device an then put on the inclined conveyor
to be conveyed to the filling station.
3) Bottle/package separating: Separating the bottles/packages from
infeed conveyor as per customers’ requirements and then conveyed to
the filling station.
4) Bottle/package pushing: The pusher gather the scheduled
bottles/packages and then push them onto the ready-to-fill
position.
Specifications:
| Model | WKD-SZX-15 |
| Power supply | 220V/380V,50/60Hz,5KW |
| Compressed air pressure&consumption | 0.6MPa
450ml/min |
| Machine dimension | L3800-4800*W1600*H2200mm |
| Case size | L200-280mm
W150-380mm
H100-350mm |
| Packing speed | 15 cases/min |
| No.of grippers | 3 sets |
Why us:
- Original manufacturer with 10-year professional experience.
- Customized equipment according to customer' requirements, high
quality with competitive price.
- Abundant export experience: our products have been exported to
Indonesia, Malaysia, Vietnam, Singapore, etc .
- Superior after-sale service: Engineers available to service
machinery overseas.
FAQ:
1. Are you a factory or trading company?
We are a professional packaging machine manufacturing factory that
set up for 10 years. We always pay attention to the development of
the industry. We can give a discount according to the quantity of
machine you purchase.
2. How long can I get feedback after inquiry?
We will reply you within 10 hours in working day.
3. Where is your factory located? How can I visit there?
Our factory is located in Qian Deng Town, Kun Shan City, Jiangsu
Province, China.
We will provide pick-up service if you want to visit our company.
You can choose the destination of Pudong airport or Hongqiao
airport. Hongqiao airport will be much more closer to our company.
4. Delivery time
Machines & molds order takes 55 work days after pre-payment
received.
5. What is the package? Is it suitable for shipment?
Machines will be packed by the standard wooden case or PE film
wrapping.
It is suitable for shipment.
6. Payment term
30% by T/T as down payment, balance 70% by T/T or L/C before
delivery.
