Small Scale Feed Processing Machines Animal Feed Production Line

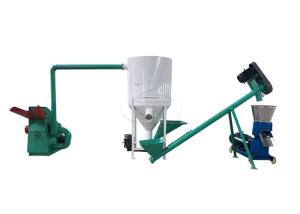

Introduction of Feed Pellets Making Production Line
1. Crusher Machine
Feed Hammer Mill has the advantages of reasonable design,compact
structure,safe,wear resistant,simple structure,compact
assemble,lfeed crusherow price,reliable performance,low power
consumption,high capacity,good quality of final products and low
production cost,etc.It is combined with cutting and grinding,it can
cut and grind branch and limb which diameter is between 10 to
200mm,meanwhile.
2. Screw Elevator
This kind of screw elevator is mainly used to elevate the materials
from storage bin to feeder in the production line.
Features
3. Feed Combined Mixer
This 2 in 1 animal feed combined mixer and grinder is vertical type
which saves your room and saves your price cost and absorb the raw
materials by itself,completely automatically feeding.
This animal feed mixer and grinder is mainly used to crushing and
mixing kinds of raw materials to produce poultry feed. The crushing
part is hammer mill grinder with feature of absorbing the raw
materials automatically,the mixing part is vertical screw
type,feeding raw materials through a screw conveyor.
4. Simple Feed Pellet machine
a. The flat die pellet mill is made of wear-resistant material thus
having a long service life.
b. Simple structure, small area coverage, easy operation and
maintenance.
c. Low consumption, competitive price and cost saving.
d. Electric feed flat die pellet mill can process various kinds of
solid grain into small feed pellets for animals like fish, shrimps,
chicken, rabbit, pig, etc.
Features
The machine has smooth surface, low nutrient loss, moderate
hardness and deep internal ripening. It can also kill pathogenic
microorganisms and parasites, and can add various additives to the
processed pellets to ensure the quality of the feed. The pellet
feed has a low water content due to dry in and out, facilitating
storage after sealing.
Technical data
| Model | AIX-300 |
| feed pellet machine power | 22kw |
| crusher power | 7.5kw |
| mixer power | 3kw |
| coveyor power | 3kw |
| capacity | 1t/h |
| weight | 1000kg |
Various model of feed pellet machine parameters
| Model | Power(kw) | Capacity(kg/h) | Speed(r/min) |
| AIX-125 | 2.2-3 | 50-60 | 320 |
| AIX-150 | 3-4 | 80-100 | 320 |
| AIX-210 | 7.5 | 250-350 | 370 |
| AIX-230 | 11 | 300-450 | 380 |
| AIX-260 | 15 | 450-600 | 320 |
| AIX-300 | 18.5 | 600-700 | 300 |
| AIX-360 | 22 | 700-800 | 260 |
| AIX-400 | 30 | 900-1200 | 270 |
