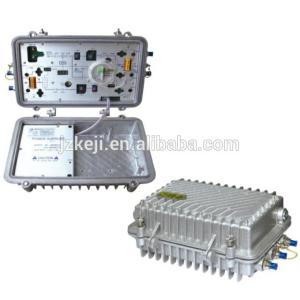

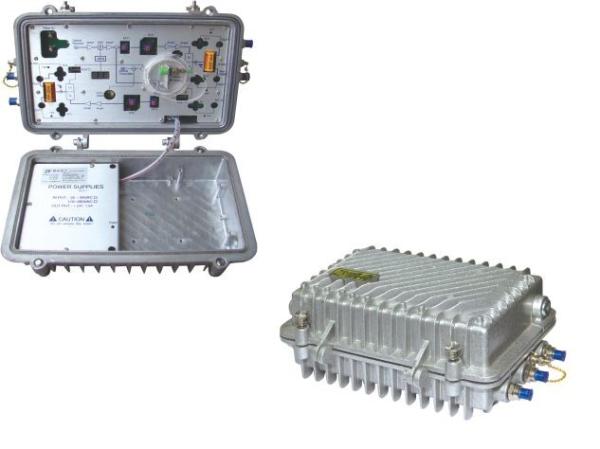

    1200~1600nm Wavelength Outdoor Optical Node 2 Way Optical Receiver With AGC

    Ask Lasest Price
    Brand Name : JiZhong
    Model Number : JZOR1000RII-4AV
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

    1200~1600nm Wavelength Outdoor Optical Node 2 Way Optical Receiver With AGC

    CATV 4 Output Outdoor Optical Node CATV Two Way Optical Receiver With AGC

    Model NO:JZOR1000RII-4AV


    Performance characteristics:

    1. 5~1000MHz optimized circuit design;

    2. High responsivity PIN receiving. Digital tube displays input optical power;

    3. GaAs power amplification technology, make Link path good C/N, C/CSO, C/CTB index. each power increasing module push 2 way downlink output, output capacity is 108dBuV;

    4.each port is divided with independant bi-directional filter, each way reverse signal can be adjusted independantly;

    5. Support network management function, Type-II network management transponder;

    Technical Parameters:

    ItemsUnitTechnical Parameters
    Donwlink working bandwidthMHz47~1000
    Optical AGC rangedBm-8~+2
    Optical working wavelengthnm1200~1600
    RF in band flatnessdB±0.75
    Output reflection lossdB≥16(47~550MHz) ≥14(550~862MHz)
    Link C/NdB>51
    Link C/CSOdB>60
    Link C/CTBdB>65
    Output leveldBuv104
    Uplink working bandwidthMHz5~65
    Uplink output optical powermW0.5~4
    NPRdB

    ≥20(DFB laser) ≥15(FP laser)

    (NPR≥30dB) (NPR≥30dB)

    Power consumptionW≤30
    Sizemm330x220x130
