    Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

    Ask Lasest Price
    Brand Name : None
    Model Number : None
    Certification : CE
    Price : USD50~USD600/unit
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000pcs/month
    Delivery Time : 5-8 working days bulk order negotiate
    • Product Details
    • Company Profile

    Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

    Compact Automatic Transfer Switch ATS Box Waterproof Wall-mount CB class Single Phase 2 Pole 63A 400V IEC 60947-6


    Three-phase 3,4 pole available as well


    Integrates electrical and mechanical interlocking systems to guarantee safe transfer operation.

    It is applicable for the three-phase four-wire power supply system of AC 50Hz, rated voltage AC 230V/400V, rated current up to 630A.


    It can realize automatic and manual changeover between normal and back up power supply power, and stop power supplying to load when changeover process of power supply is carried out.


    The switch is applicable for two circuits power supply and in the condition which requires high quality power supply.


    Standard: IEC 60947-6-1


    Technical Data



    Rated current Ie(A)

    63A~630A

    Installation

    Din rail or Panel Mount

    Rated insulation voltage Ui (V)

    AC400/690V, 50HZ

    Rated working voltage Ue (V)

    AC230V/400V 50/60Hz

    Grade

    Grade PC: able to male and withstand, not to break short-circuit current

    Use category

    AC-33iB

    Rated impulse withstand voltage(KV)

    8KV

    Poles

    2P/3P/4P

    Weight (KG)

    0.81

    LIFE

    Electrical:2000times; Mechanical: 5000times

    Rated limited short-circuit current Iq

    50KA

    SCPD (FUSES )

    RT16-00-63A

    Control circuit

    Rated supply voltage Us: AC230V,

    50Hz Correct Working condition:85% Us~110% Us

    Ancillary circuit

    Contact capacity: AC230V 50Hz, Ie=5A

    Contact transfer time

    <50ms

    Operating transfer time

    <50ms

    Return transfer time

    <50ms

    Off-time

    <50ms

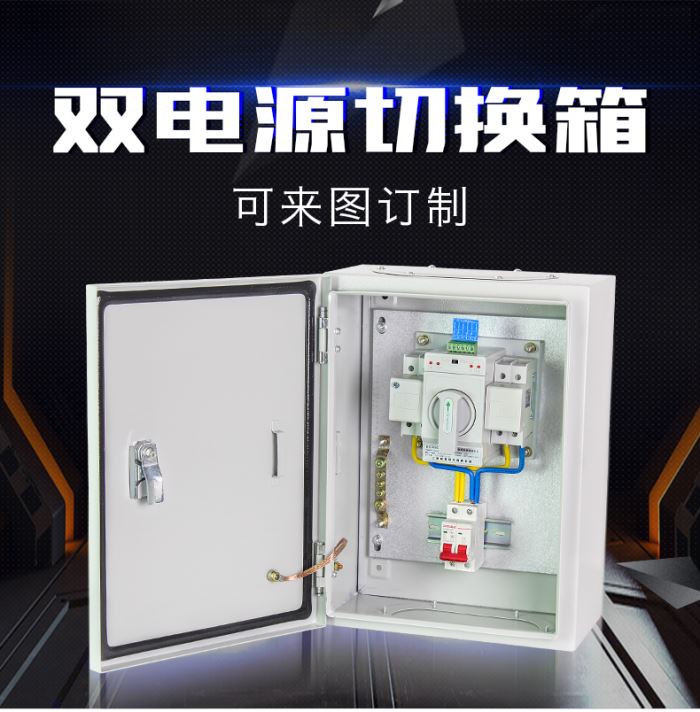

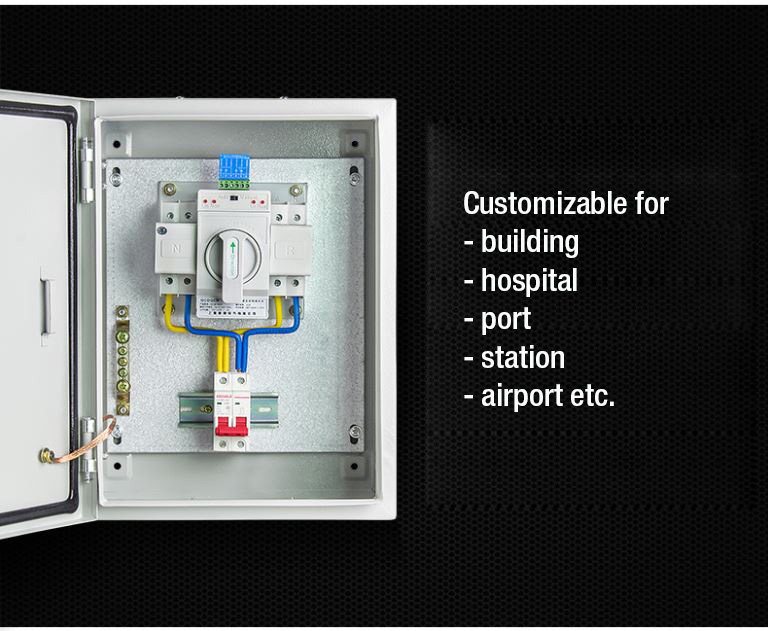

    3-Phase 4-wire autmatic transfer switch box for wall-mount application
