Professional Noise Reduction Fence Soundproof Material Aluminum
Sheet Metal
1. Product Description

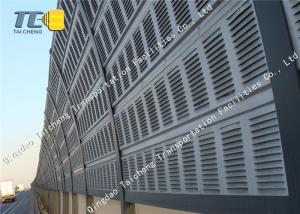

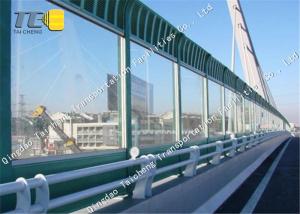

Noise barrier ,Sound insulation sound barrier, mainly used for
sound insulation and noise reduction of roads, highways, elevated
composite roads and other noise sources. It is divided into a
purely sound-reflecting reflective sound barrier, and a composite
sound barrier combined with sound absorption and sound insulation.
The latter is a more effective sound insulation method. Refers to
wall structures placed on the side of railways and highways to
mitigate the effects of driving noise on nearby residents. Sound
insulation walls are also known as sound barriers.
2. Noise Barrier Advantages
• Good sound absorbing property
• Painted various colors, and can enrich sound barrier landscape
• It can be washed like glass
• Fireproofing, weather resistance
• Corrosion resistance
• Convenient installation
• Size and shape can be customized
• Light weight, recyclable
• Long service life, etc
Product Name | Noise Barrier | Color | White, Blue, Green Or Customer's Request | Size | As Customers' Requirement | Feature | Easily Assembled, Excellent Weather Resistance, Salt Spray
Resistance | MOQ | 50 Meter / Meters | Usage | Road,highway,Public Place,Community,School | Service | Traffic noise, equipment noise attenuation, industrial noise
barriers, highways and highways are the most used types of sound
barriers. |
|
|
3. Production Process
4. Specifications
Common specifications for noise barrier:
Screen size : 500mm*2000mm, 500mm*3000mm
Thickness of galvanized sheet of screen body : 0.6mm, 0.7mm, 0.8mm,
1.0mm, 1.2mm
Total thickness of the screen body : 80mm, 100mm,
Column : H-shaped steel 100mm*100mm*6*8mm, 125mm*125mm*7*10mm
Height : 3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m
Style : upright, upper with chamfer
Color : dark gray, light gray
Surface treatment : galvanized + spray
Stable : increase the diagonal support
The main components of the sound barrier : Foundations, columns,
screens, fixtures, seals, and some also include top structures.
Sound barrier screen body : galvanized sheet, back sheet, keel,
glass wool, DuPont film, front punching rate of 25% or more; sound
barrier column: H-shaped steel, flanged chassis, diagonal bracing,
inner rib plate, outer rib plate;
5. Our installation
6. packing
7. FAQ
1. You are manufacture factory or trading company?
We are manufacture factory. you are warmly welcomed to vist us per
your convenience.
2. Does your company can produce other specification
Yes, we can manufacture the fence according to your request .
3. What about the delivery times?
About 15 days after getting your prepayment.it will be according to
your quatity.
Customized order may need longer time.
4. What is your payment terms?
T/T , L/C at sight, cash.
5. Did you check all the product before leaving your factory?
Yes. All production line have adequate quality control.
