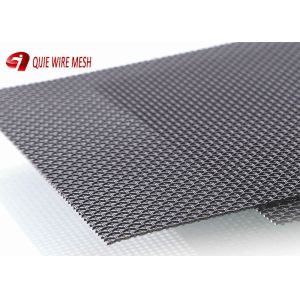

Stainless steel insect screen, also known as stainless steel window
screen, insect screening, stainless steel fly screen, security
mesh, stainless steel bug screen, it is designed to cover the
opening of a window or door.
The mesh is usually made of stainless steel and stretched in a
frame of wood or metal. It serves to keep leaves, debris, insects,
birds, and other animals from entering a building or a screened
structure such as a porch, without blocking fresh air-flow.
Stainless steel window screening is physically the strongest and
most corrosion resistant with almost an unlimited life.
Our Testing Standards
Diagonal Deviation, strict controls of +/- 5mm
Fine Grinding - The Surface Treatment Of 0.03mm
Double Plain Weave High Hardness To Bulletproof
Precipitation Of Metal Cons ,Non Magnetic
Steel Wire After Micron Grade Precision Machining
Approval Astrilian:
1. Knife Shear Test,
2. Fire Test,
3. Jammy Test,
4. The Probe Test
5. The 1000hours Salt Spry Test
Material
Stainless steel 316 grade has 10% to 14% nickle, which has very
good resistance to corrosion. Using as window or door screens, we
need a better material to keep for many years. So SS316 is the
first choice.
Maishi do honest business, and we use real 316 stainless steel
material.
Mesh Size x Wire Dia:
10mesh x 0.8mm, 10mesh x 0.9mm
11mesh x 0.8mm, 11mesh x 0.9mm, 12mesh x 0.7mm
14mesh x 0.5mm, 14mesh x 0.55mm, 14mesh x 0.6mm
Avaliable Screen Size
Width: 750mm, 900mm, 1000mm, 1200mm, 1500mm
Length: 2000mm, 2400mm, 3000mm
Coating Color
Black/Gray/White epoxy coated etc
Specification:
Stainless Steel Security Window Screen:
product specifications:| Material | Mesh count | Wire Dia. | colour |
| SS304/316 | 11X11 | 0.90MM | Black /gray/original/green/white |
| SS304/316 | 11X11 | 0.80MM | Black /gray/original/green/white |
| SS304/316 | 12X12 | 0.70MM | Black /gray/original/green/white |
| SS304/316 | 12X12 | 0.60MM | Black /gray/original/green/white |
| SS316/316 | 12X12 | 0.70MM | Black /gray/original/green/white |
| SS304/316 | 14X14 | 0.60MM | Black /gray/original/green/white |
| SS304/316 | 15X15 | 0.45MM | Black /gray/original/green/white |
Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10
mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh
* 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm
900mm×2400mm 1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,
Normal Specifications
The below specifications are the normal specifications asked by
customers.
If you need other specifications, please do not hesitate to contact
us for customized sizes.
| Material | Mesh Size | Hole Size | Sheet Size |
| General tensile 316 Marine grade stainless steel wire | 8mesh×1.2mm | 2.0mm | Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm
1000mm×2000mm/2400mm/3000mm/3500mm
1200mm×2000mm/2400mm/3000mm/3500mm
1500mm×2000mm/2400mm/3000mm/3500mm |
| 9mesh×1.0mm | 1.8mm |
| 10mesh×0.8mm | 1.8mm |
| 10mesh×0.9mm | 1.6mm |
| 10mesh×1.0mm | 1.5mm |
| 11mesh×0.8mm | 1.5mm |
| 11mesh×0.9mm | 1.4mm |
| 12mesh×0.7mm | 1.4mm |
| 12mesh×0.8mm | 1.3mm |
| 12mesh×0.9mm | 1.2mm |
| 14mesh×0.5mm | 1.3mm |
| 14mesh×0.55mm | 1.2mm |
| 14mesh×0.6mm | 1.2mm |
| 18mesh×0.32mm | 1.0mm |
|
| High tensile 316 Marine grade stainless steel wire | 8mesh×1.2mm | 2.0mm | Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm
1000mm×2000mm/2400mm/3000mm/3500mm
1200mm×2000mm/2400mm/3000mm/3500mm
1500mm×2000mm/2400mm/3000mm/3500mm |
| 8mesh×1.3mm | 1.9mm |
| 9mesh×0.9mm | 1.9mm |
| 9mesh×1.0mm | 1.8mm |
| 10mesh×0.9mm | 1.6mm |
| 10mesh×1.0mm | 1.5mm |
| 11mesh×0.8mm | 1.5mm |
| 11mesh×0.9mm | 1.4mm |
1.Sheet Size:Can be customized 2.Coating Color:Black/Gray/White 3.Packing:50 pcs per polywood box |
Stainless Steel Insect Screen Features:
1. stable structure
2. anti-corrosion
3. theft proof
4.durable and good looking
5. easy clean and install
Chemical Composition:
| Chemical composition of stainless steel wire: |
| Grade | Chemical Composition(%) |
| C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | =0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =0.045 | =1.00 | =2.00 | =0.045 | =0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =0.12 | =0.75 | =1.00 | =0.040 | =0.030 | =0.60 | 16.00~18.00 | - |
| 430A | =0.06 | =0.50 | =0.50 | =0.030 | =0.50 | =0.25 | 14.00~17.00 | - |
World top class powder
we offer only top quality meshes. We usually use Camel and AKZO
powder. This powder has strong attachement, and will stay bright
shiny color for many years, and will not peal off or fade under the
sun.
Packing
Security screen are separated by plastic film and waterproof paper,
and normally 50 pieces pack into one poly-wood case.
If you have special requirement for the packing, please do not
hesitate to let us know.
Characteristics: Air permeability, light penetration, bright color, good stability,
fire proof, high temperature
Resistant, acid & alkali resistance and corrosion resistant.
Application
Powder coated stainless steel security mesh is widely used as
stainless steel window screen security mesh, and stainless steel
door security mesh. Because of its bright surface, it is very
beautiful when installing. The mesh hole size ensures the enough
ventilation, good view of the outside scenery, and at the same time
stops the insects. So it is most welcomed by families.
Features
high -definition from the inside looking out , from the outside
looking blurred, can you create a safe and comfortable private
space, and can block the mosquitoes into the room, bedroom and
office space is warm, safe , anti- theft, bulletproof product of
choice. Generally referred to as metallic safety net doors
Property:
keep out flies, wasps, bees, mosquitoes and other insects but not
midges, provides excellent light transmission and allows good
air-flow. Have Good stability and resistance to rust, heat, acid,
alkaline and corrosion.
Quality inspection of Stainless Steel Insect Screen:
How to customize your own Stainless Steel Security Window Screen?
When you need a quotation, please send a picture you are required,
and supply me with the fellow parameters:
1. The material of the wire
2. The wire diameter
3. The mesh hole
4. The mesh width and length
5. The treatment of the surface
