MIS-MATX07 Embedded IPC, 2 horizontal expansion bits, supporting
i3/i5/i7 CPU, supporting multiple COM
Features:
■ Heat Dissipation, Dust Prevention and Seismic Resistance
■ Supporting all Micro-ATX motherboards of Yanyue
■ Supporting 2 PCI or PCIE lateral extensions
■ An extra string of 4USB can be introduced on back
■ Flexible configuration, flexible configuration of CPU, memory,
hard disk according to customer requirements
| Specification parameters | Optional configuration |
| Chassis | All-steel structure, powder-sprayed black | Optional industrial grey and other colors |
| Front | None | Customizable customer LOGO or other requirements |
| Back | Main board big square hole, 2 lateral expansion slots, 1 DB9, 4 USB | Customizable other interface bits |
| Side | 2 suction fans | |
| Hard disk rack | one 2.5 inch hard drive rack | Support MSATA and 2.5 inch dual hard disk |
| Adapt motherboard | Inter B75//H81//H110 chip Micro-ATX_5 motherboard | Miro-ATX motherboard of Yanyue is available |
| CPU/GPU | Intel i3 2120 | Support 3th, 4th, 6th, 7th generations desktop CPU or board CPU |
| Memory | 4G DDR3 | Optional 2G/8G/16G/32G memory |
| Hard disk | 128G MSATA | Optional 32G/64G/256G Msata solid-state hard disk; supports 2.5
inch hard disks with various capacities |
| Interface | AC input; 6USB (4 USB 3.0); 2RJ45 (gigabit); VGA; HVI, audio
output; MIC input; 6COM (standard) | Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch
mechanical hard disk or 2.5 inch capacity hard disk |
| Extansion | 2 expansion slots | Optional extraction of any two expansion slots on the motherboard |
| Size | No bracket:320mm * 311mm * 158mm | Net/Gross Weight | 4.5/5KG |
| Industrial Power Supply | 200W Industrial 1U Power Supply | |
| Installation mode | Bracket installation |
| Work and Environment |
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation |
| | | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration |

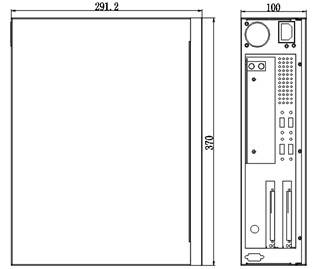

| Installation Dimension Diagram |  |
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in
Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2
years, we can repair it for free, but charge for parts is needed.
please contact us at any time when necessary. We besides our
professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface
ports and OS, the package box and housing(outer shell)as you wish,
prices will be varied according to the quantity and specification.
