C Section Roll Forming Machine , C Purlin Forming Machine For Building Material

C profile Purlin roll forming machine, galvanized sheets

Quick Detail:

1. Thickness : 1.5mm-3.0mm
2. Material : GI sheets, 245Mpa
3. Material weight : 5Mt
4. Coil inner diameter : 510mm
5. Driven way: by 15kw*2 driven motor
6. Cutting way: by stop to cut design
7. Cutting tolerance : ±1mm

Application:

C purlin roll forming machine is equipment that produces C shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

Compared to traditional purlins, steel purlins have so many advantages, they are light, easy to install, and recyclable for other buildings etc. Therefore, as we can see, in modern steel industrial buildings or prefab engineered buildings, people always use C purlins, Z purlins and sometime U purlins without flange stiffeners as well.

Machine list:

1. Hydraulic De-coiler
2. Pre-leveling device
3. Hydraulic Pre-punching device
4. Roll forming machine
5. Hydraulic Post- cut device
6. Run out table
7. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX600mm Hydraulic Un-coiler or manual de-coiler

Un-powered; Load capacity= MAX.5Ton

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil inner–diameter=510+/-30mm

Coil Width= MAX.600mm

Mandrel rotation: Draft type

• Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

• Hydraulic Pre-punching device

Share in the same hydraulic group with post cut

To punch below holes

Single slotted or round holes on web

Double slotted or round holes on web

Single slotted or round holes on flange each side

• Roll forming machine details as below table :

• Hydraulic Post-cut device

Hydraulic group: 11KW

Stop to cut design

There is not waste after cut-off

Cutting material : Cr12, heat treatment

• PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

• Product Rack 4 meter long ,rolled type

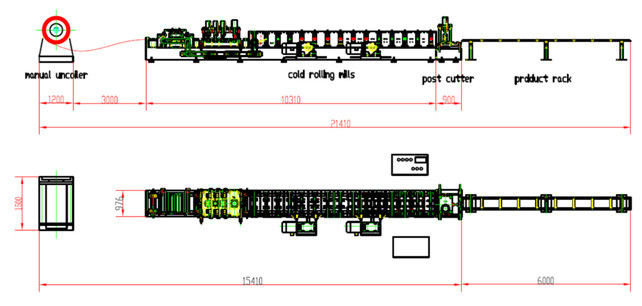

Profile Drawing/Layout/Equipment reference pictures:
