Steel Door Frame Roll Forming Machine Bottom Support Rolling Shutter Profile Machine

Steel door frame roll forming machine, bottom support

Application:

A rolling shutter door or roller shutter door is a type of door that consists of many horizontal slats hinge together and the door opens and closes by raising up or lowering down along a rolling shutter door track or guide rails (more at rolling shutter door track roll forming machine)

A steel rolling shutter door slat roll forming machine has been designed and built because of the needs for the production of steel roller shutter doors. The slats can be made out of galvanized steel strips, pre-painted steel strips and some occasions alloy aluminum strips as well. This roll forming machine is technically capable to produce roller shutter slats with any lengths available and effective widths customizable from metal with thickness 0.6-1.2mm (some customers request heavy duty rolling shutter slats up to 2mm thickness).

Quick Detail:

1. Thickness : 1.5-2.0mm
2. Material : GI, 350Mpa
3. Input width : 213mm
   1. Material weight: 1.5MT cap.
   2. Driven way: by 11Kw driven motor
   3. Cutting way: by 5.5Kw hydraulic group
   4. Cutting tolerance : ±1mm

Machine list:

1. 1.5MT*300mm manual un-coiler or driven de-coiler
2. Roll former
3. Hydraulic cutting device
4. Run out rack
5. PLC control system

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

Or Driven motor also can be included as request

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

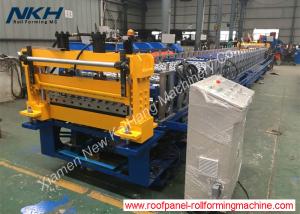

Profile Drawing/Layout/Equipment reference pictures:
