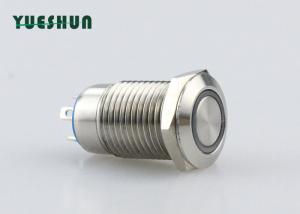

LED Illuminated Latching Push Button Switch , Metal 6 Pin Push Button Switch

    Buy cheap LED Illuminated Latching Push Button Switch , Metal 6 Pin Push Button Switch from wholesalers

    Buy cheap LED Illuminated Latching Push Button Switch , Metal 6 Pin Push Button Switch from wholesalers
    • Buy cheap LED Illuminated Latching Push Button Switch , Metal 6 Pin Push Button Switch from wholesalers

    LED Illuminated Latching Push Button Switch , Metal 6 Pin Push Button Switch

    Ask Lasest Price
    Brand Name : YUESHUN
    Model Number : JS22F illuminated Series
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : T/T to our company account or by paypal
    Supply Ability : 5000Pcs/Day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    LED Illuminated Latching Push Button Switch , Metal 6 Pin Push Button Switch

    22m LED illuminated Latching Push Button Switch 6Pin Termlmal Metal Waterproof push button switch


    Product Description

    - The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater;
    - The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out;
    - It can be used in an environment with humidity between 10% and 90% and operating temperature between -40 and -90 degrees Celsius.As long as it's in that range, it's not a big deal.


    Product Specification

    - Led Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

    - Led Voltage : 3V 6V 12V 24V 36V 110V 220V for choose.

    - Led Type : Ring , Dot , Power , etc. Logo customization are available.


    Model NumberJS22F illuminated Series
    Mounting Hole22 mm
    Max.Switch RatingIth : 5A Ui : 250V AC
    Material

    Body Material:

    Stainless Steel / Black Oxidized Aluminum

    Button Material:

    Stainless Steel/Black Oxidized Aluminum

    Contact Material: Silver Alloy
    Base Material: PBT
    The Front ShapeFlat Round Head
    Terminal TypePin Termlmal
    Switch OperationLatching or Momentary
    Contact Configuration1NO + 1NC or 2NO + 2NC
    Mounting panel thickness1-13 mm
    Operation DistanceAbout 2.5 mm
    Protection LevelIP67
    Operating Temp-20℃~+55℃

    Size Drawing
