Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight

    Buy cheap Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight from wholesalers

    Buy cheap Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight from wholesalers
    • Buy cheap Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight from wholesalers
    • Buy cheap Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight from wholesalers

    Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD13PMT5X31
    Certification : CE,ROHS,FCC
    Price : TBA
    Payment Terms : T/T,Western Union,Paypal
    Supply Ability : 10000 units per month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight

    rugged computer monitor multi-touch display 1920 x 1080 13.3inch LED backlight


    ITD rugged industrial multi-touch display panel mounted monitors series is fully-integrated‚ multi capacitive touch screens that combine PCT and PCAP technology in a sleek industrial-grade IP65/ NEMA 4-4x ingress rating TFT-LCD flat panel with flat front surface design and HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. The ITD multi-touch display can be directly connected to industrial processing machines, control systems, automation systems, pharmaceutical operator interface, and other harsh computing environments.


    ModelITD13PMT5X32
    IPIP65(for front panel only)
    IKTBA
    Cut-Out Dimensions355.2×226.8mm
    Weight(N.W/G.W)2.5Kg / 2.8Kg (Approx.)
    LCD Type13.3"Active matrix TFT-LCD
    Video InputVGA and DVI-I, HDMI, Audio
    Recommend Resolution1280×800@60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External Brick
    Input (line) Voltage: 100-240 VAC, 50-60 Hz
    Output Voltage/Current: 12V at 3A Max.
    Power Consumption10W for 400nits; 15W for 1000nits
    Mount Interface

    1)VESA 75×75/100×100mm

    2)Panel Mounting via Clamps

    Regular Warranty1 Year for TFT panels; 2 Years for others.
    Agency ApprovalFCC,CE,RoHS Certified

    2. 2 LCD Specification

    Active Area(mm)293.42(W) × 164.97(H)
    Resolution1920×1080
    Pixel Pitch(mm)0.152855×0.15285 (H×V)
    Nominal Input Voltage VDD+3.3V(Typ.)
    Viewing angle (L/R/T/B)85°/85°/85°/85°
    Contrast800:1
    Luminance(cd/m2)350(1000nits optional)
    Response Time(Rising/Falling)25ms
    Support Color16.2M
    Screen Scanning60Hz
    Backlight MTBF(hr)50000h

    2.3 Touch Screen Specification

    TypeProjected Capacitive Touch Screen
    Resolution4096×4096
    Light Transmission85%±5%
    Touch Life Cycle50 millions times
    Touch Response time5ms
    Touch System InterfaceUSB A type
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Mac, Android

    2.4 External AC Power Adapter

    Output12V DC/3A
    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    2.5 Environment

    Operating Temp.-10~60°C (-20~70°C optional)
    Storage Temp.-20~70°C
    Operating RH:20%~80%
    Storage RH:10%~90%

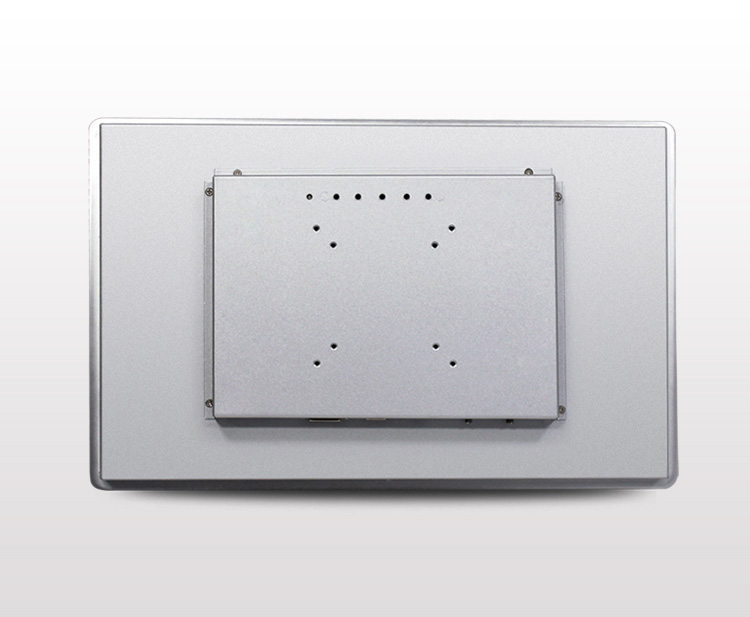

    Product Display:
