Double Data Backup Portable Led Display / Electronic Banner Display
140 / 140 Degree
Features of perimeter display
1. Rubber mask: The rubber mask can protect football player and
also protect led display itself;
2. Foam protector on the top of cabinet can also protect players ;
3. Adjustable bracket at the back of cabinet;
4. Good waterproof protection: Front is IP65 and back is IP54;
5. Good color uniformity, because we use top rate of Led;
7. Energy saving, due to we use high efficiency power supply, top
rate of led, etc;
8. Double data backup: if one data cable doesn’t work, perimeter
led display still can work well;
9. Easy transportation: we will make flight cases with wheels for
clients. So it is convenient for transportation. We also can tailor
special cart for moving perimeter led display;
9. 7,500nits brightness always available;
Specification
| Indoor / Outdoor PM | IPM6 | IPM10 | OPM8 | OPM10 | OPM16 |
| Pixel Pitch(mm) | 6 | 10 | 8 | 10 | 16 |
| Pixel Matrix Per Sq.m | 27777 | 10000 | 15625 | 10000 | 3906 |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3535 | SMD3535 | SMD3535 |
| Brightness (nits) | 2200 | 1800 | 6800 | 7500 | 8000 |
| Scan | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 |
| Module Dimension | 192x192mm/0.63x0.63ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 256x256mm/0.84x0.84ft |
| Cabinet Dimension | 960x960mm/3.15x3.15ft | 1280x960mm/4.2x3.15ft | 1280x960mm/4.2x3.15ft | 1280x960mm/4.2x3.15ft | 1024x1024mm/3.36x3.36ft |
| Cabinet Resolution | 160x160 | 128x96 | 160x120 | 128x96 | 64x64 |
| Cabinet Weight | 40kg / 88Ib (Iron) | 44kg / 97Ib (Iron) | 49kg / 108Ib (Iron) | 48kg / 105Ib (Iron) | 46kg / 101Ib (Iron) |
| Power Con. (Max / Avg) | 550 / 100 w/sq.m | 500 / 90 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 690 / 130 w/sq.m |
| IP Rate | IP43 | IP65 |
| Service Access | Front / Rear | Front / Rear |
| Refresh Rate (HZ) | 2880 | ≥2880 |
| Grey Scale (bit) | 14bit | 16bit |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 |
| Input Voltage (AC) | 110V / 240V | 110V / 240V |
Detailed:

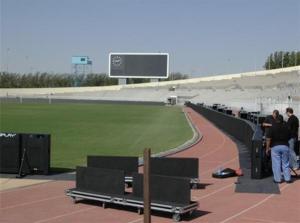

Solid, Compact, Strong Cabinet Design For All Weather and Prevent
for Any External Attacks

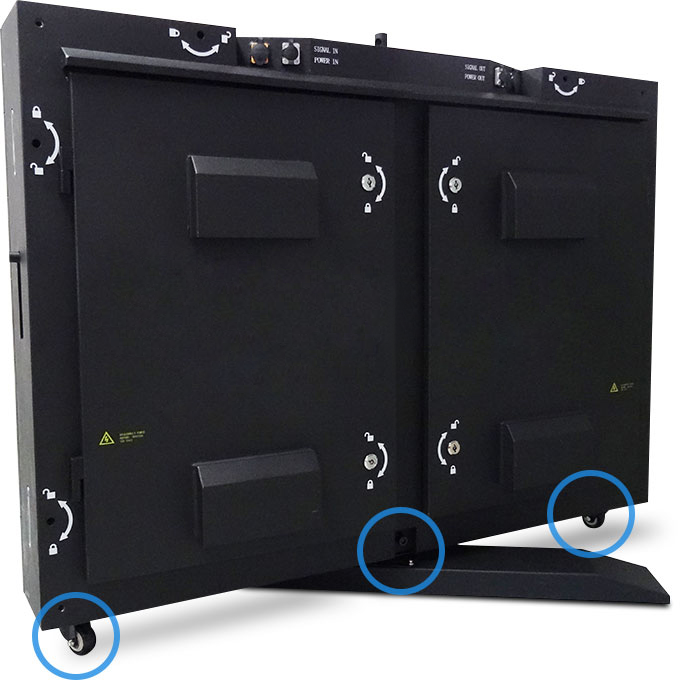

Rotating Design with Wheels for Emergency Exit
PM series with rotating base and wheels for emergency exit for
perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most
football associations.

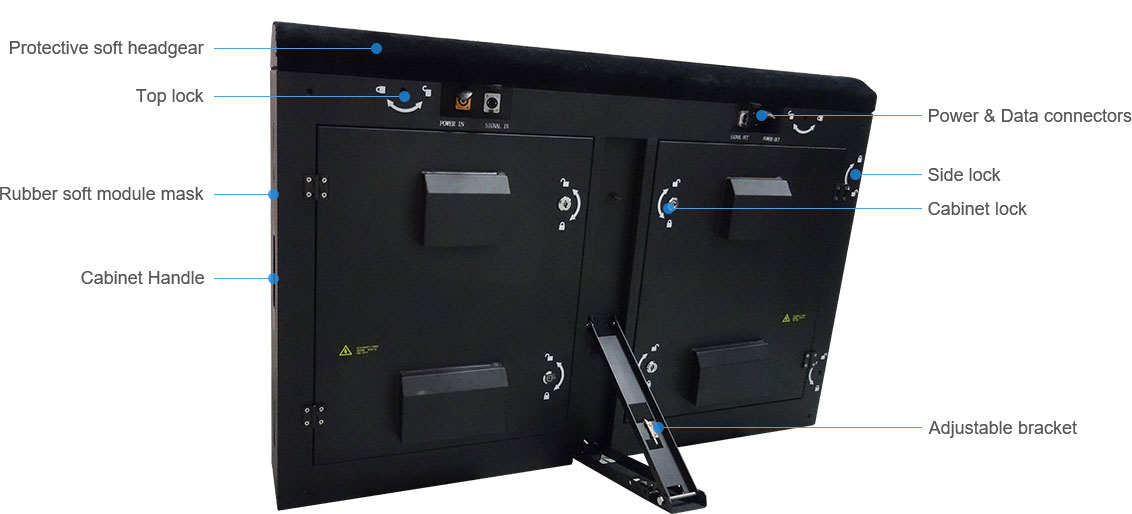

Adjustable Bracket
Cabinet adjustable angle between 60°and 90°
Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module
mask protect LED from ball and players striking,
besides protect players against further injury.
Independent RCD Protection
RCDs protect the system against short circuits, overcurrent and
leakage currents which makes the system absolutely safe to operate.
Professional Software PM Player
PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED
display, which is friendly for advertising application.
4H Makes Perfect Visual Effect
| · High Brightness: ≥7000nits | · High Grey Scale: 65536 levels |
| · High Refresh Rate: 2880Hz | · High Contrast: 5000:1 |
SMD Performance and View Angle
Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing
Energy Saving Stadium Perimeter
LED Display
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
Backup for Recycle
