Control Rooms Large Led Display Board UHD P1.875 small pixel pitch
LED display
Fine Pitch LED Display delivering true-to-life images and videos
with high precision pixel pitches, bringing a great viewing
experience to the audience at a close viewing distance. By
providing extraordinary image quality with precise colors, Fine
Pitch LED Display creates remarkable visual experiences that keep
constant over time. What’s more, it allows you to increase your
screens’ work-life thanks to their high reliability and advanced
features. Lightweight front accessible Fine Pitch LED Display with
conveniences over the conventional fixed led screen, it makes
things easier for stack or hanging installation without any tools.
The uses for the Fine Pitch LED Display are endless, and people
become more and more used to interacting with them for business.
People always stop and say “Wow.”
Feature
Ultra HD Display Excellent Visual Effects
Ultra-high dynamic contrast and high-quality display,
ultra-high-definition perfect picture quality, bring you
unprecedented visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
Perfect Structural Design
HD LED Screen J Series with the High-precision cast aluminum
material, perfect splicing without gaps. Fast locking makes
installation and removal extremely easy.
High-quality aviation plugs ensure reliability.
Seamless splicing and installation type to assemble screen freely
Patented connecting piece, and hang pin rotating at 120 degree to
lock the case, and gap adjustable to ensure the seamless screen,
and rapid installation and removal supported. Only 1/4 of
installation time compares with traditional structure.
Wide View Angle
HD LED Screen J Series withe the Vertical/horizontal: 160°/160°,
broadcast-level color gamut, CT and brightness adjustable,more
appropiate for long-time watching.
Smooth Display Image
Smooth display image is realized shooting with 2000HZ refresh rate
even under 1/2000 shutter professional camera shooting
fully meeting the demand of live feed switching.
Application:

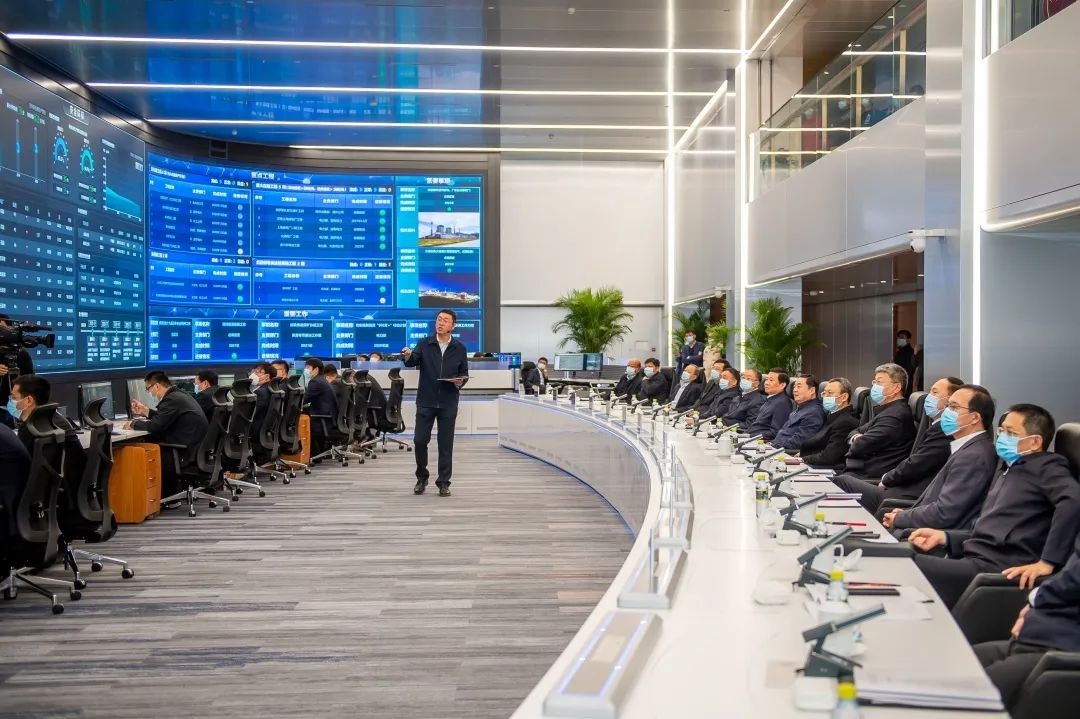

State-of-the-art and upgraded Fine Pitch LED Display solutions will
enable novel applications in a wide range of fields, including
control rooms, broadcasting studios, meeting & training rooms,
museums, college campuses, brand retails, shopping malls, cinemas,
hotels, sports bars, airports, and houses of worship, etc.
Product specification
Parameters
| |
| Pixel Pitch | 1.8mm |
| Pixel Density | 284426 px/m2 |
| LED Type | SMD1515 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 640*480mm |
| Cabinet Resolution | 356*267px |
| Cabinet Weight | 4.6kg |
| Cabinet Material | die-casting |
| Ingress Protection | IP54 |
| Brightness | >800nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/43 Scan |
| Power Consumption(avg.) | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 3840Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10%
50~60Hz |
Temperature
(operating/storage) | -20~50°C
-40~60°C |
| Humidity(operating/storage) | 10%~90%RH
10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003
|
*Notes: Specifications are slightly different according to
different configurations. Please contact our salesperson for
details. All rights are reserved to AVOE.
Detailed Pictures
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the
trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer
service
We had developed our service organization by responding to and
meeting the diverse and demanding needs of customers by service
mission. We had become a cost-effective, highly skilled service
organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and
will do our best to fulfill our promise. We always bear this
service goal in mind. We can't boast the best, yet we will do our
best to free customers from worries. When you get problems, we had
already put forward solutions before you.
