Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price
Descriptions of Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price:
Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price is a high efficiency CNC router machine with effective working size
2000*4000mm, which is mainly used for 2D / 3D popular woodworking
such as home door making, cabinet making, woodcrafts making,
furnitures , artcrafts and decorations.
Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price QCR2040 Features:
1. CNC Router Machine bed is heavy-duty and welded by the thick wall steel seamless tube
and processed by high temperature tempering treatment and vibrating
stress relief(VSR) to reduce residual stress, good stability,no
deformation.
2. CNC Router Machine adopts Japanese YASKAWA 850W servo motor with reducer and drive as
its driving system, and dual servo motors for Y-axis, moving stably
with high speed.
3. Using Italy well-known HSD brand of air-cooled brushless spindle
6.0kw with two direction air-cooling system, low noise, strong
cutting ability and high efficiency to ensure the long time
working.
4. Using Taiwan Hiwin linear square guide rail, double row four row
slider, high precision, long life time.
5. Using the higher precision Rack and pinion transmission for X
and Y axis, ball screw transmission for Z-axis, ensuring the
machine fast speed and higher precision.
6. The working table is a Class A double-layer vacuum adsorption
table, super strong adsorption force with vacuum water-circulating
pump, professional for processing MDF sheets.
7. Auto oil lubrication to make the maintenance more easy.
8. Emergency stop button, ensuring the operation safe.
9. Good software compatibility : uitable for Type3, Artcam,
Castmate, Ucancam, JDpaint, WENTAI and others.
10. Intelligent memory function: support power lost and breakpoint
processing.
Applications of Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price:
Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price can process not only 2D flat projects such as : carve ,engrave ,
mill and cut characters, letters, pattern, but also 3D relief and
embossment on very widely- range materials as below:
1. Almost all nonmetals: all kinds of woods, solid wood, bamboo,
MDF, acrylic, PVC, organic glass, PCB, plastic , foam and others.
2. Hard nonmetals (needs water-cooling) : natural marble, granite,
bluestone, sandstone, artificial stone, tombstone, headstone ,
quartz stone ,milestone, memorial stone, ceramic tile, ceramics,
jade or jade stone, crystal, glass,Man-made marble and others.
3. Soft metals (needs cutting fluid-cooling) : copper,
brass,aluminum composite panels, aluminum plate, aluminum sheet and
aluminum parts .
Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price can process very wide- range materials, so its applicable
industries as below:
1. Furniture / Woodworking industry: Chair, door, window, bed,
cabinet, screen, craft sash, composite gates, cupboard doors,
interior doors, sofa legs,art murals, headboards, redwood classical
and antique furniture, exquisite European furniture, flat panel
type furniture carving, decorative products sculpture,Wave Plate,
man-made marble cabinet table surface or other decorations carving.
2. Advertising Industry: advertising identification, Billboard,
signage, badges, logo, company plate, signs, emblem, display
panels, fair signs, building numbers, signs of decoration, literal
hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon
channel, lightbox.
3. Artwork Industry: Solid wood ornaments, souvenirs, gifts,
instrument 3D surface engraving, photo frame, Wood crafts, gift
box, jewelry box and other exquisite art crafts.
4. Electronic Industry: circuit board, insulation mterial, LED
display screen and PCB engraving and cutting.
5. Cylindrical objects (needs rotary device): 360° carving human
body, statues, sculptures, handicrafts, furniture decorations ,
wood handicrafts, wood stair handrail and armrest, stone column,
buddha and other statues.
Technical Parameters of Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price:
| Item: QCR2040 | 2040 CNC router |
Equipment size (length * width * height) mm | 4500*3400*1800 |
| Working size(X*Y*Z) mm | flat processing size: 2000*4000*200mm rotary processing size: diameter 250mm , length 3000mm |
| Spindle | Brand | Italy HSD |
| Rate & sets | 6.0kw *1 set |
| Cooling mode | air-circulating cooling |
| Speed | 18000rpm/Min |
| Motor & Drive System | Motor | Japanese YASKAWA servo motor 850W *4 sets + stepper motor 86-450B
for rotary |
| Drive | Japanese YASKAWA SGD7S driver *4 sets + Leadshine 860H for rotary |
| Frequency inverter | Brand | DELTA |
| Power & sets | 7.5KW*1 set |
| Operating system | RichAuto A58 DSP |
| Structure | Table structure | Aggravated bed (tempering treatment) |
| Rail | Taiwan Hiwin NO.25 square rails |
| X transmission | Germany WMH Herion 1.5M high precision helical gear |
| Y transmission | Germany WMH Herion 1.5M high precision helical gear |
| Z transmission | Taiwan TBI ball screw |
| Working table | T-slot |
| Lubrication system | Automatical centralized lubrication |
| Reducer | Japanese SHIMP reducer |
| Wire & cable | Shanghai ECHU cable with high-flexibility and shielding function |
| Wiring standard | CE Wiring standard |
| Electric appliance | CHINT appliance |
Max Speed
| Idle | X axis | 50-90m/Min(100 alarm) |
| Y axis | 50-90m/Min(100 alarm) |
| Z axis | 6m/Min |
| Working | X axis | 20-45m/Min | Different speeds for different materials, tools and processes
requirements |
| Y axis | 20-45m/Min |
| Z axis | 6m/Min |
| Precision | Process | ±0.02 |
| Reposition | ±0.05 |
| Command code | G code |
| software compatibility | Type3, Artcam, Castmate, Ucancam, JDpaint, WENTAI,Mastercam,
Powermill and others |
| Working voltage | AC 380V/220V 50HZ |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Weight Net/Gross | 1800KG/ 2150KG |
Machine Parts of Best CNC Router Machine 2040 With 4th Rotary Axis
For Sale With Affordable Price:
Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price in factory :
Controlling carbinet on Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price :

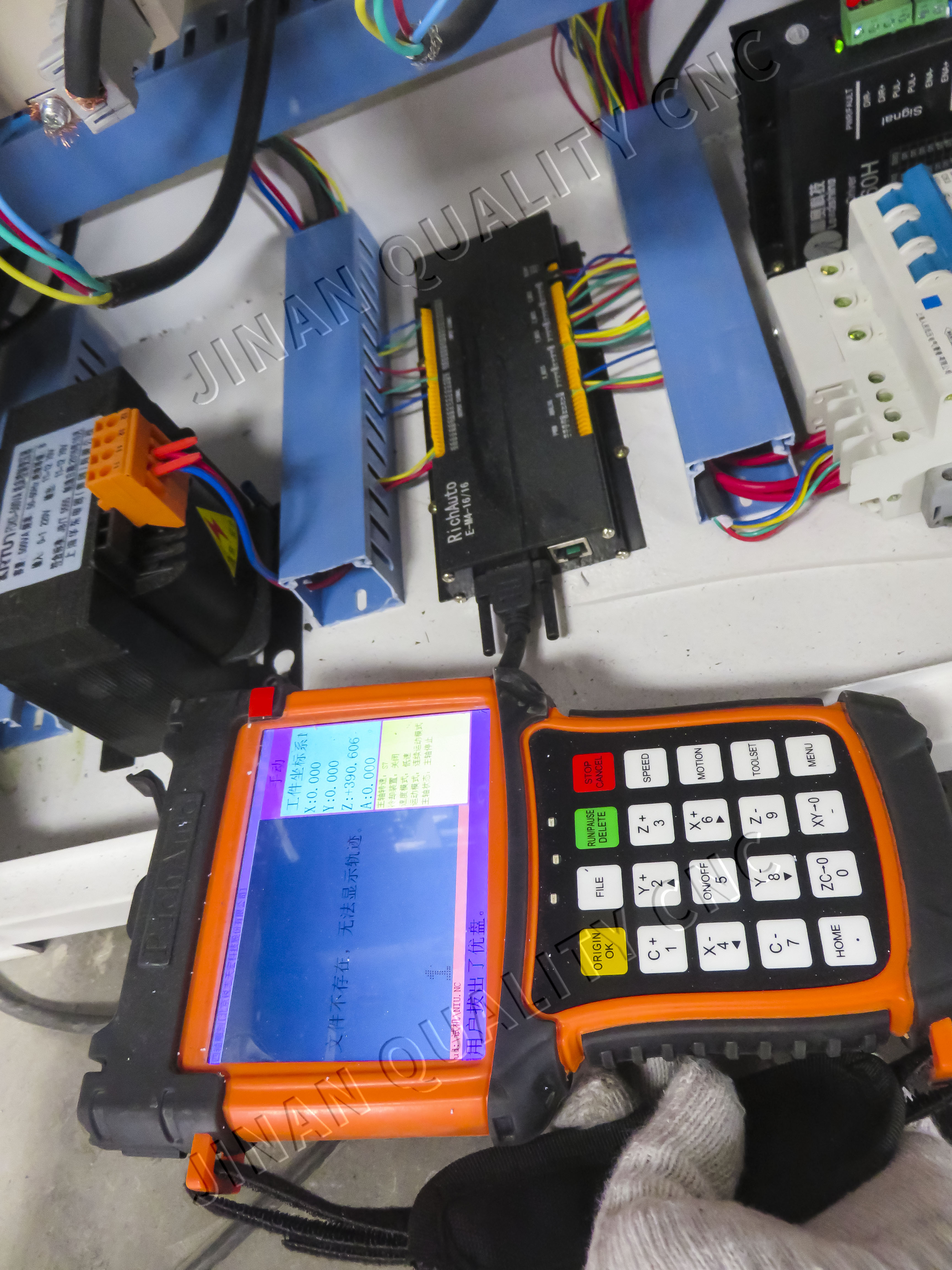

Professional controlling system for 4 axis RichAuto A58 DSP on Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price :
Japanese Yaskawa servo motor 850w with reducer on Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price:
Hiwin square rails + helical gear and rack + hard-limit on Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price:
Rotary device with 4 claws on Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price :
Our Service of Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price :
1. Installation and Debugging:
Customers can get detailed operation manual and instruction video
of our CNC stone router. We will make sure that customers can
operate machines skillfully.
2. Training: Customers can get free technical training. Mainly
training are as follow:
1). Software operation.
2). Machine operation and maintenance.
3). Instruction of technical parameters, as well as their setting
ranges.
4). Solutions for common problems.
5). Training -free in our factory.
3. Equipment Maintenance:
1). Life-time free technical consultant and software updating
service.
2). Life-time customer Service responding in 24 hours.
4. Guarantee:
The guarantee period shall be 36 months counting from the date on
which the machine arrives destination port. Except the damage
artificially, we are responsible for offering the fittings free of
charge during the guarantee period, but you must send the damaged
fittings to us by courier with your charge before we send back the
alternative fittings to you. After the guarantee of 36-month quality period, the parts required to repair or change, if any, we
offer the cost price (agent price ) with the parts.
5. Standard Package List as below:
Best CNC Router Machine 2040 With 4th Rotary Axis For Sale With
Affordable Price QCR2040 | 1 set |
| Tool cutters / kits | 10 pics |
| Collets | 2 set |
| Machine power cable | 1 pic |
| Proximity Limit for spare | 2 sets |
| Clamps | 6 sets |
| Tool box | 1 set (with spanners,U disk for controlling software parameters,
working samples and so on) |
About us:
Q1: How about warranty?
A1:
1. The guarantee period shall be 36 months counting from the date on
which the machine arrives destination port. Except the damage
artificially, we are responsible for offering the fittings free of
charge during the guarantee period, but you must send the damaged
fittings to us by courier with your charge before we send back the
alternative fittings to you. After the guarantee of 36-month quality period, the parts required to repair or change, if any, we
offer the cost price (agent price ) with the parts.
2. We offer life-time technical technical consultant ,software updating service and life-time
customer Service responding in 24 hours for free service.
3. Afterservice person in charge : Skype / whatsapp/ Wechat/ Tel:
+8613176441785 Carol zhu.
Q2: What's the delivery time?
A2: 5-8 working days to delivery port.
Q3: What's the usually delivery terms?
A3: FOB, CIF, DDP, Exworks will be OK.
Q4: What's the MOQ?
A4: 1 set.
Q5: What's the delivery port?
A5: Usually Qingdao port, also we can deliver machines to Shanghai
port and Guangzhou.
Q6: What's the packing?
A6: Iron Pallet and export- standard Plywood cases .
Q7: Can you place OEM orders?
A7: Yes,OEM orders are acceptable. We can manufacture machines
according to your requirement with your design,logo,color,materials
or brand information.
Q8:Where is your factory located? How can I visit there?
A8:Our factory is located in JiNan City, Shandong Province, China,
about 2 hours from Beijing, 3.5 hours from Shanghai and 10 hours
from Guangzhou by high-speed train.
