Stable Digital Readout System Digital Readout For Milling Machine Convenient To Operate

    Buy cheap Stable Digital Readout System Digital Readout For Milling Machine Convenient To Operate from wholesalers

    Buy cheap Stable Digital Readout System Digital Readout For Milling Machine Convenient To Operate from wholesalers
    • Buy cheap Stable Digital Readout System Digital Readout For Milling Machine Convenient To Operate from wholesalers

    Stable Digital Readout System Digital Readout For Milling Machine Convenient To Operate

    Ask Lasest Price
    Brand Name : Rational
    Model Number : DRO WE6800
    Certification : CE SGS ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 15000 set per mont
    Delivery Time : After received down payment 5-15workdays
    • Product Details
    • Company Profile

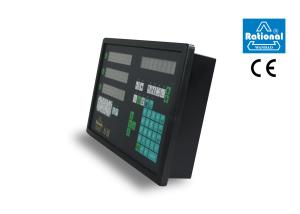

    Stable Digital Readout System Digital Readout For Milling Machine Convenient To Operate

    Stable Digital Readout For Milling Machine Numerical Analysis Convenient To Operate


    Product brief:
    WE6800 is suitable for various kinds of machines. Coordinating with linear scale, this digital readout analyzes, processes and displays the data of displacement measurement.

    Characteristics:
    1. Adopts self-developed 24-bit IC and when resolution is 0.001mm, the speed of counter is 4m/s.
    2. Anti-jamming capabilities of power supply and signal can be more than 2200V.
    3. The indicator indicates the work status.
    4. Premium quality and durable panel, which is convenient to replace.
    5. Recalls the last position after power failure without battery.
    6. Can be connected with linear scale or encoder to carry out processing and measuring for various kinds of machines.
    7. Additional calculator feature.
    8. Wide range of input voltage (AC 90V~240V).


    Features:
    Zero clearing.Numerical analysis.
    Pre-sets value.Filters numerical value
    Absolute coordinate / relative coordinate /aided zero clearing.Metric units / Imperial units transfer.
    Diameter / semi-diameter can be selected.Shrinkage rate.
    Finds mechanical original point (RI).Calculator.
    Circular point hole.Oblique line hole.
    Arc processing.Bevel processing.
    LatheRS232 communication protocol (Optional configuration).
    EDM output.Edge finer (Optional configuration).

    Specifications:

    Input voltage

    AC 90V~240V

    Power

    Maximum: 15W

    Input signal

    Orthogonality TTL square wave; frequency<2MHZ; electric current>1mA

    Resolution

    0.1,0.2,0.5,1,2,5,10

    Weight

    1.5kg

    Dimension

    296 x 184 x 45 (mm)
