    810mm Automatic Thermoforming Machine For PP PE BOPS Container

    Ask Lasest Price
    Brand Name : ALLEPACK
    Model Number : XG-A
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : T/T,L/C
    Supply Ability : 2set/month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    810mm Automatic Thermoforming Machine For PP PE BOPS Container


    810mm Automatic Thermoforming Machine For PP PE BOPS Container

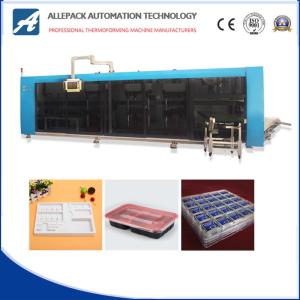

    Automatic thermoforming machine for PP PE BOPS Container is fully automatic multi-stations thermoforming machine are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen.



    Technical parameters


    ModelXG-A-3
    Max forming size610×660 mm
    Max forming height/depth120 mm
    Max roll sheet diameterΦ600mm
    Sheet width470~670 mm
    Thickness of sheet0.15~2.0 mm
    Stroke of top mold120 mm
    Stroke of bottom mold120 mm
    Max cutting force60 Tons
    Power supply3P 380V AC 50/60Hz or customize
    Top heater power32KW
    Bottom heater power32KW
    Max power consumption80KW
    Air pressure0.8 Mpa
    Working speed10~18 cycle/min
    Overall size (L×W×H)8000×1800×2200 mm
    Weight4000KG

    Remark: We can provide customized machine according to user’s requirement.

    Considering the development of machine, all data and pics is for reference only


    Application:

    This thermoforming machine used for producting high demand of disposable fresh/fast food,fruit plastic cups,boxex,plates,container,and pharmaceutical,wine,electrical blister packaging,PP,PS,PET,PVC,OPS plastic sheet etc.


    Contact:
    In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
    Q1: What about your material ?
    Q2: The size of your sample; length Width and thickness?



    Any Problem please contact our Allepack sales team!
