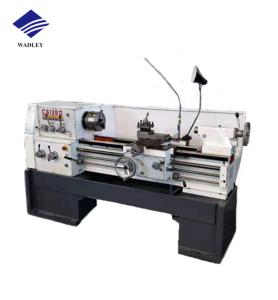

    CA6140 CA6240 multi-purpose lathe machine metal turning precision manual heavy duty lathe machine price

    Ask Lasest Price
    Model Number : CA6140/CA6240CA6150/CA6250/CA6161/CA6261/CA6180/CA6280
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    CA6140 CA6240 multi-purpose lathe machine metal turning precision manual heavy duty lathe machine price

    CA6140 CA6240 multi-purpose lathe machine metal turning precision manual heavy duty lathe machine price



    A. Bed rail by super audio quenching and precision grinding.
    B. Precision grinding of the main shaft box, low noise.
    C. More thread type.
    D. Electrical safety performance is good, high reliability.
    E. With electromagnetic brake, the color of available options

    Type

    CA6140

    CA6240

    CA6150

    CA6250

    CA6161

    CA6261

    CA6166

    CA6266

    CA6180

    CA6280

    Max. swing over bed400mm500mm610mm660mm800mm
    Max. swing over carriage210mm300mm370mm400mm540mm
    Max. swing in gap630mm720mm830mm880mm1020mm
    Max. effective length in gap210mm
    Max. length of workpiece750/1000/1500/2000/2200/3000/4000mm
    Width of bed400mm
    Section of turning tool25*25 mm
    Main spindle motor7.5kw(10HP)
    Spindle
    Spindle speed16--1400rpm(24step)
    Spindle bore52mm (B: 80mm),(C: 105mm)
    Spindle taperNo.6(MT6)(90 1:20)[113:20]
    Feed
    NO. of feed(64 kinds)(for each)
    Range of metric threads(1-192mm) (44 kinds)
    Range of inch threads(1-24tpi) (21kinds)
    Range of module threads0.25-48 (module 39 kinds)
    Range of diametral pitch threads1-96DP (37 kinds)
    Tailstock
    Max. tailstock spindle travel150mm
    Tailstock spindle diameter75mm
    Taper of tailstock spindle centre hole1-96DP (37 kinds)
    Packing dimensions (L*W*H)
    Overall dimensions for 750mm2440*1140*1750mm
    Overall dimensions for 1000mm2700*1140*1750mm
    Overall dimensions for 1500mm3200*1140*1750mm
    Overall dimensions for 2000mm3700*1140*1750mm
    Overall dimensions for 2200mm4030*1140*1750mm
    Overall dimensions for 3000mm4800*1140*1750mm
    Overall dimensions for 4000mm5680*1140*1750mm
    Weight (kg)
    Overall dimensions for 750mm21002170230024002520
    Overall dimensions for 1000mm22002260238025802720
    Overall dimensions for 1500mm23802450257728303000
    Overall dimensions for 2000mm27502800300030503300
    Overall dimensions for 2200mm28003000315034003500
    Overall dimensions for 3000mm33003500360040004220
    Overall dimensions for 4000mm35003800395046004900

    Q1.How to send my enquiry?
    You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

    Q2.How long can I get feedback after enquiry?
    We will reply you within 3 hours in working day.

    Q3.Delivery time
    Machines order takes 30 days after deposit payment received. Please inquiry sales.

    Q4.What is the package? Is it suitable for shipment?
    Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

    Q5.Payment term
    30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

    Q6.Can I trust you?
    Sure, we're Made in China Gold Suppliers,

    Q7.How long is the warranty for machines?
    Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.

    Q8.Can you engineer come to our place to help with machine installation & commission?
    Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
