    Manual Horizontal Milling Machine X6132 With Bed Type Working Table

    Ask Lasest Price
    Model Number : X6132
    Certification : CE,ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 pcs/month
    Delivery Time : 10-20 days after received payment
    • Product Details
    • Company Profile

    Manual Horizontal Milling Machine X6132 With Bed Type Working Table

    Manual Horizontal Milling Machine X6132 With Bed Type Working Table

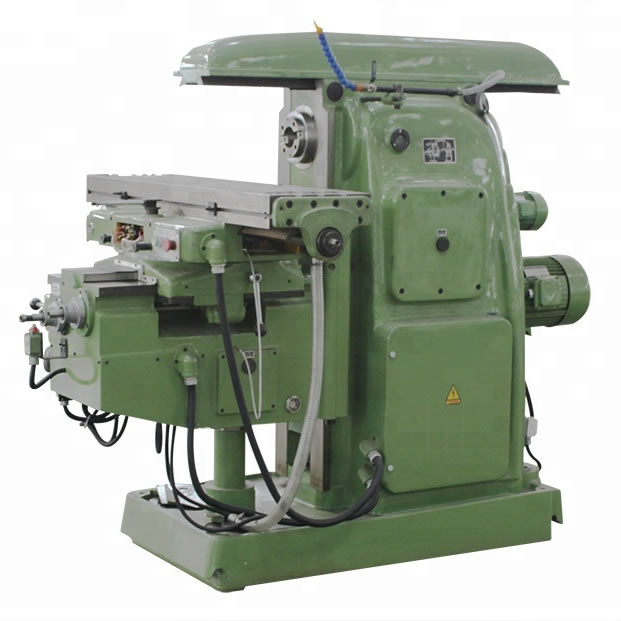

    The X6132 universal milling machine consists of a bed, a cantilever and a tool holder, a table, a slide and a lifting table. It is widely used in industrial manufacturing.

    The Universal Rotary-head Knee-type milling machine X6132 is widely used in the machining workshop, with optional accessories as vertical milling head,dividing head, rotary table, machine vice, milling chuck, etc.


    SpecificationsUnitsX6132X6132BX6132BH
    Table sizemm320×1325320×1600320×1600
    Max. longitudinal of table travel(manual/automatic)mm700/680900/680900/880
    Max. transverse travel of table (manual/automatic)mm255/240255/240255/240
    Max. vertical travel of table (manual/automatic)mm320/300320/300410/390
    Max rotary angle of table±45°±45°±45°
    Distance between spindle axis and column guide waymm30-35030-35030-440
    Spindle speed step1818steps18
    Spindle speed ranger.m.p30-150030-150030-1500
    Feed range of table travel1818steps18
    Main motor powerkw7.57.57.5
    Rapid motor powerkw2.22.22.2
    Overall dimensionmm2294×1770×16102294×2050×16102294×2050×1790
    N.W./G.W.kg2650/29502740/30402940/3240

    The main performance characteristics:

    1. Using rectangular guide machine is Rigid good,

    2. Work table and guide rail through the ultra audio spark quenching.

    3. Work bench X. Y.Z are gear drive automatic feed and manual operation

    Application:

    1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.

    2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
