Fast Action Bimetallic JUC-31F Miniature Thermal Switch for
Temperature Control
Quick Detail:
| Model | KSD-01F |
| Reset Type | Auto Reset |
| Rated Voltage & Current | AC 120V/220V 1A, DC 48V 1A |
| Contact Type | 1D(Normally Closed) or 1H(Normally Open) |
| AmbientTemperature | -55℃ ～+180℃ |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,CE |
Description:

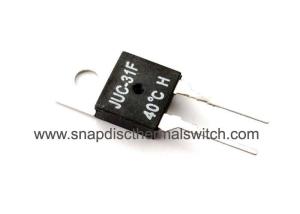

JUC-31F Series Miniature Thermal Switch is a snap-action thermostat
with a bi-metal disc as the temeprature sensing element. Its main
working principle is to control the temperature by opening or
closing the bi-metal strip. It stays at normally closed/normally
open status, it opens/closes when temeprature rising and
closes/opens when temperature decreasing. It has the
characteristics of snap action,high accuracy, long life cycle, high
sensitivity, high reliability, small size, light weight, easy
installation. We use international TO220/Y220 standard packing.
JUC-31F Miniature Thermal Switch has been granted national patent,
and has passed UL, TUV, CE, CQC, CB and ROHS. It also has passed
the 100,000 life test of UL laboratory. It is widely used in
printed circuit board equipment, power supply equipment, audio
amplifier, welding equipment, automation equipment and
instrumentation for temperature control and temperature protection.
Specifications:
1. Dimensional Outline
2. Action Temperature Table
| Operating temperature | Recovery temperature | Form of contract point | Rated load | Contract resistance | Insulation resistance | Dielectrics voltage-resistance | Testing mode: Speed of temperature rise and fall |
| 40℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 45℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 50℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 55℃±5℃ | 6℃～16℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 60℃±5℃ | 6℃～18℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 65℃±5℃ | 7℃～20℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 70℃±5℃ | 7℃～20℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 75℃±5℃ | 8℃～22℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 80℃±5℃ | 8℃～24℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 85℃±5℃ | 8℃～25℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 90℃±5℃ | 8℃～27℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 95℃±5℃ | 10℃～28℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 100℃±5℃ | 10℃～30℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 105℃±5℃ | 11℃～31℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 110℃±5℃ | 11℃～33℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 115℃±5℃ | 11℃～35℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 120℃±5℃ | 11℃～36℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
Applications:
● PCB circuit board
● Communication power supply
● Switching power supply
● UPS power supply
● Medical power supply
● Module power supply
● Audio amplifier equipment
● Rechargeable devieces
● Rectifiers
● Inverters
● Welding equipment
● Aerospace instrumentation electronic equipment
Competitive Advantages:
1. Small size and expedient installation
2. Snap action,high accuracy
2. High temeprature resistance
3. High reliability
4. Long life cycles of 100,000 times
5. UL,CQC,VDE and RoHS certification approval
6. Wide application
