Brand Name : | Can be Customized |
Model Number : | HL-patch cord |
Certification : | CE FCC Rohs |
Price : | Negotiable |
Delivery Time : | 3~7working days |
Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
Repeatability (dB) | ≤0.1 | |||
Durability(1/Matings) | ≥500 | |||
Operation Temperature (°C) | -25~+70 | |||
Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
diameter | 0.9mm 2.0mm, 3.0mm etc | |||
Cable material | PVC, LSZH | |||
Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |

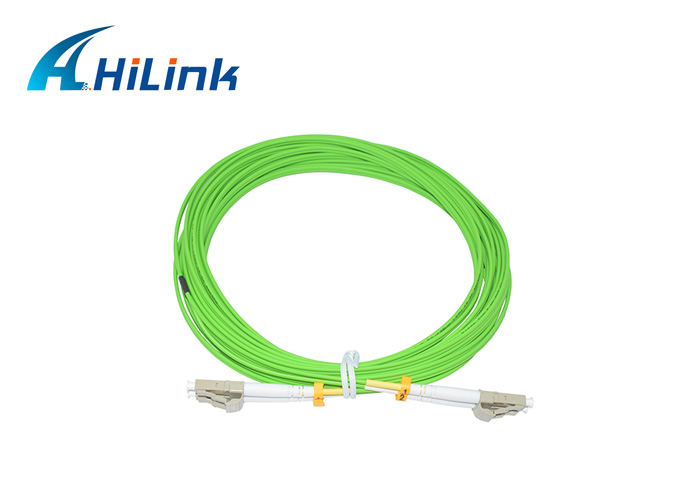

Real Photo Show
Other Patch cord
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new
with new components and parts and absolutely never use old and
refurbished materials. All the optical transceivers have been
through functional test and aging test. We provide 3 years warranty
for all the optical transceivers from the date of shipment.

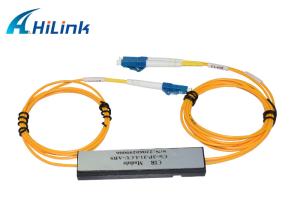

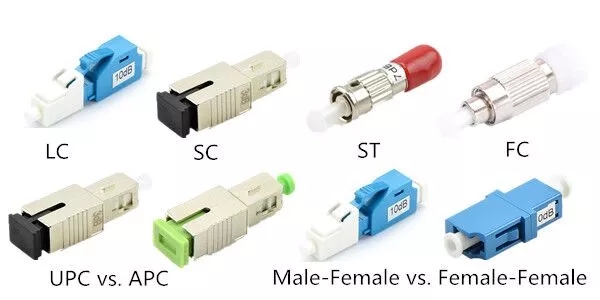

Our related products
Packaging
Shipment
