    Infineon Chip Tyre Pressure Monitoring System LCD Color Display With 4 Internal Sensors

    Ask Lasest Price
    Brand Name : Yoelbaer or OEM
    Model Number : YB268
    Certification : CE ROHS
    Price : USD 30/Set - USD32/Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500pcs/week
    Delivery Time : 3-5 working days for mass order, samples have in stocks,
    • Product Details
    • Company Profile

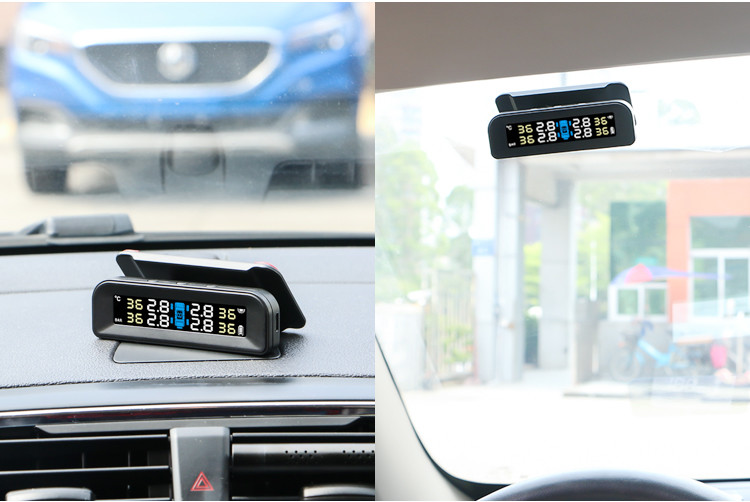

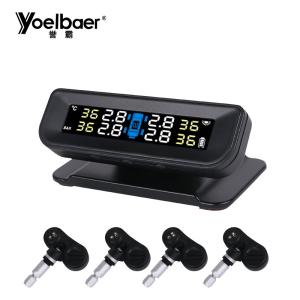

    Infineon Chip Tyre Pressure Monitoring System LCD Color Display With 4 Internal Sensors

    Wholesale TPMS Tire Pressure Monitoring LCD Color Display With 4 Internal Sensors



    1.Use the solar or power line for option to get electricity.
    2.With LCD display and 4 internal or external sensors,equipted with sticker to adjust angle and easy to installation
    3.Monitor the tempreature and pressure with high degree accuracy, display for 4 tires all at once.
    4.Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
    5.RF wireless technology,auto-alarm when tire pressure and temperature is abnormal.
    6.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.
    7.Support tire position exchange function.
    8.Sensor waterproof grade:IP67
    9.With INFINEON,FREESCALE Chip, anti-explosion battery.

    Monitor Parameter:

    Operating voltage3.7-5V
    Storage temperature-30°C-90°C
    Working temperature-30°C-85°C
    RF Emission frequency433.92MHz±50KHz
    RF Signal sensitivity-90dbm
    Display modeLCD Color display
    Working pressure0-99Psi
    Bright operating current≤6mA
    Black operating current≤4mA


    Sensor Parameter:

    Battery life3 years
    Operating voltage2.1-3.6V
    Storage temperature-30°C-90°C
    Working temperature-30°C-85°C
    Temperature resolution±2°C(25°C)
    Pressure range0-7.0Bar
    Pressure resolution±0.1Bar
    Waterproof gradeIP67
    Transmitted power≤10dBm
    Transmit frequency433.92MHz
    Weight≤29g
    Size57mm*53mm*23mm
    Lithium batteryCR1632(Model)



    Descriptions:
    Many accidents are caused by the flat tyre on the highway. As a car owner, the safety of driving is the first thing.
    To reduce such accidents, the installation of tire pressure monitoring system (TPMS) is necessary.
    With the TPMS, we can keep the tyre working within the specified pressure and temperature range at any time to reduce the damage of the tyre for safe driving.
