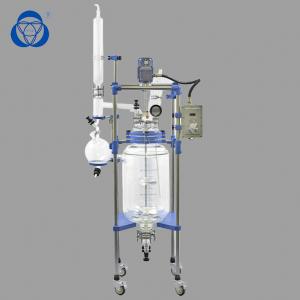

    200L Lab Double Layer Glass Reactor Solids Dissolution Batch Distillation

    Ask Lasest Price
    Brand Name : NTSJ
    Model Number : FPGR-200
    Certification : CE,ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets/momth
    Delivery Time : within 5days after payemnt received
    • Product Details
    • Company Profile

    200L Lab Double Layer Glass Reactor Solids Dissolution Batch Distillation

    Glass Reactor

    Glass reactors vessel are a general term for containers that are widely used in the process industry.


    Used in various process operations such as solids dissolution, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization.


    Used in pharmaceutical, petrochemical, food, fine chemical synthesis, agrochemical, paint and dye industries.


    Product ModelPGR-3PGR-5PGR-10PGR-30PGR-50PGR-100PGR-200
    Volume(L)35103050100200
    Neck No.on Cover4566666
    External Diameter of Inner Vessel(mm)150180230330365460600
    External Diameter of Outer Vessel(mm)200230290365410500650
    Cover Diameter(mm)150180265265265340340
    Vessel Height(mm)3004004507308509501200
    Motor Power(W)4060140140140250750
    Vacuum Degree(Mpa)0.0980.0980.0980.0980.0980.0980.098
    Rotation Speed(rpm)50-140050-60050-60050-60050-60050-60050-600
    Torque(Nm)0.270.952.232.232.233.986.37
    Power(V)220220220220220220220
    Dimension(mm)320*350*900450*450*1200650*650*1900700*500*2100800*600*23001000*700*27001200*900*3200

    Main features

    Borosilicate glass has good chemical and physical properties, large bottle mouth, manual cleaning.
    Mechanical seals use proprietary technology to maintain optimum vacuum (0.098 Mpa) in similar products on the market.


    The whole body adopts stainless steel frame structure, which is compact and sturdy, stable and reliable, and does not shake when stirring.
    With brake casters, the movement is convenient and reliable.


    All PTFE material values, no pleural effusion, no leakage, corrosion resistance.
    Frequency control, AC induction motor, digital display, constant speed, no brush, no spark, safe, stable, continuous work.

    There is no dead angle glass discharge valve, solid/liquid material can be easily released from the bottom.
    It can be used as a distillation synthesis unit.
    Liquid crystal display makes it easier and more convenient to measure temperature.

    Customizable

    Packing and delivery
    -Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
    -Both neutral and customized packaging can be available.
    -By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.



    Our factory

    We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.


    Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.


    Our service

    Customizable

    1, Are you trading company or manufacturer?

    We are professional manufacturer and we have our own factory.

    2, How long is your delivery time?

    Generally it is within 3 working days after receiving the payment if the goods are in stock. Otherwise, it is 5-10 working days.

    3, How to solve the problem of your equipment?

    Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to solve it. If there is a broken, we will send you a new part and it is free in the period of warranty.
