    PPGI Roof Glazed Tile Roll Forming Machine Blue / Orange Color With PLC Control System

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 1050
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    PPGI Roof Glazed Tile Roll Forming Machine Blue / Orange Color With PLC Control System

    Color steel PPGI roof galzed tile roll forming machine with PLC control system


    1. Color steel PPGI roof galzed tile roll forming machine with PLC control system


    ---- Low cost, light weight but high strength, short building period, and re-cycle use

    ---- Save material , no waste.

    ---- Easy operation, low maintenance cost

    ---- Infinite sizing(any size within machine range),help to save material

    ---- Optional Punch hole at any position of purlin web side and flange side


    2. Color steel PPGI roof galzed tile roll forming machine with PLC control system parameters


    Raw material
    Processing material

    Color steel coil, Galvanized coil, Aluminized zinc coil or

    as your customized

    Processing thickness (mm)0.3-1.0mm or as your customized
    Material of rollers

    High grade 45# steel, Processed by CNC lathe,

    Hardening and tempering,

    polishing, hard chrome plated 0.05-0.07mm

    Material of shafts45# steel
    Diameter of shafts70mm or as your customized
    Forming speed3-4 m/min or as your customized
    Under frame350 H-beam
    Sidewall16mm
    Connect bar25mm, zinc plated
    Forming steps10-18 or as your customized
    Control systemDelta PLC and Inverter
    Suitable power380V, 50 Hz, 3 phase or according to your need
    Drive modeChain and sprocket, chain size 1 inch
    Main motor3-5.5kw
    Hydraulic pump station3-5.5kw
    Cutting modelHydraulic profile cutting
    Weight of the machine3.5 ton -6 ton

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


    4. Our advantage


    1. We are a factory with nearly 20 years experiences on Roll Forming Machines;

    2. We have our own research and development team with strong ability to solve all kinds of problems;

    3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;

    4. We have more than 20 technicians that can go abroad for the after-sale service;

    5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us;

    6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;

    7. Our machines have reached the International Inspection Standards;

    8. We have got the ISO9001:2008 Certificate and CE Certificate;

    9. We are always waiting to serve you 7 days a week and 24 hours a day.


    5. FAQ

    Q1:What is the MOQ?

    A:For roll forming machine,the MOQ is one set.

    Q2:Could you design the machine for me?

    A:Yes,we have professional team of engineers and are able to design and product roll forming machine as your requestment. Or if you have own drawings,we can design it as your drawings.

    Q3:Are you trading company or factory?Can we visit your factory?

    A:We have our own production line and factory.Warmly welcome to our factory. Once we have your schedule, we will arrange the professional sales team to follow up your case.

    Q4: What's your after-sale service?

    A: We'll provide engineer overseas service to help you install and debug the machine,in addition,free replacement of parts in one year warranty.

    Q5: How is your Payment Term?

    A:T/T,L/C ,Western Union

    Q6: What’s your delivery time?

    A:Normally it is about 45 days, but we will delivery as soon as possible

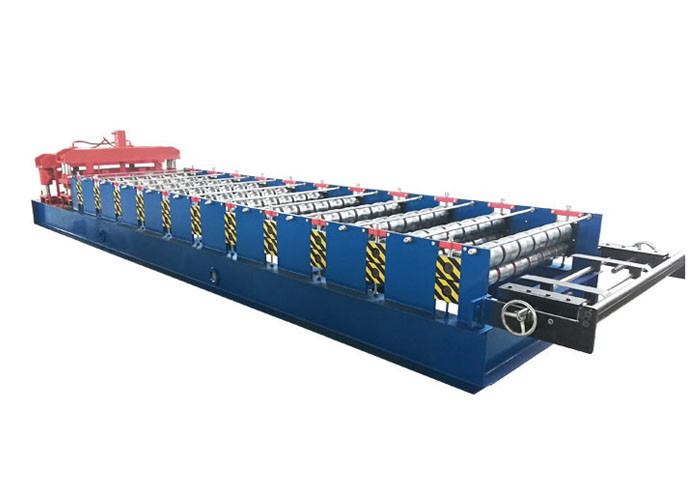

    6. Roll forming machine pictures:
