    Oursourced Proxy Management Smart Micro Grid System Zero Hardware Software Investment Hosted Vending

    Ask Lasest Price
    Brand Name : Calin
    Model Number : Calinpay-s
    Certification : STS
    Payment Terms : Western Union, L/C, T/T, Paypal
    Supply Ability : 7,000,000
    Delivery Time : 30 days
    Price : Negotiation
    • Product Details
    • Company Profile

    Oursourced Proxy Management Smart Micro Grid System Zero Hardware Software Investment Hosted Vending

    Mini Grid Oursourced proxy management electricity vending system zero hardware software investment hosted vending service

    How to collect the revenue from your mini-grid? Prepayment meter must be the best choice. Calin-pay is a cost-effective vending and management solution for any offgrid mini-grid developers who do not want to be hands on in the revenue collection management process. Calin-pay is already integrated with your local payment gateways. You pay minor transactional charge and the revenue will be transferred automatically to you account on periodic basis. Please contact us for details if you are interested.


    Outsourced proxy vending system helps the mini-grid developers to implement a prepayment metering solution without having to invest in the vending system back-office infrastructure. Of major benefit is that Calinmeter manages the complex back-office and data servers leaving the entity to be concerned merely with the electricity sale to their customers.


    Key Benefit

    1) Quick cash flow

    2) Zero cost for hardware and software maintainence staff

    3) Flexible tariff settings

    4) Scratch card vending on request

    5) Transaction reports

    6) Low operational cost

    7) Maintenance free

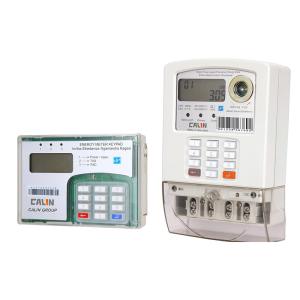

    STS prepayment electricity meter Specification Datasheet


    Parameter

    1 Phase

    3 Phase

    Nominal voltage

    110/120/220/230/240Volt

    Un (40%- 130%)

    3x110/120/220/230/240Volt

    Un(30%- 135%)

    Norminal current

    5(60)A

    10(100)A

    Connection type

    Whole current / CTVT connection

    Whole current / CTVT connection

    Maximum current

    80A

    100A

    Frequency

    50Hz

    50Hz

    Accuracy class

    IEC Class.1

    IEC Class.1

    Voltage circuit burden

    ≤1.5W & 1.2VA

    ≤1.5W & 5VA

    Current circuit burden

    ≤0.2VA

    ≤0.5VA

    Protective class

    IP 54 as IEC 60529

    IP54 as IEC 60529

    Insulation class

    6kV Class II

    6.5kV Class II

    Surge immunity

    4 kV

    4.3kV

    Electrostatic discharge

    15kV

    16kV air discharge

    Immunity to HF fields

    80MHz to 2GHz@30V/m

    80MHz to 2GHz@30V/m

    Fast transient burst

    4.3kV

    4.3kV

    Radio interference

    As CISPR22

    As CISPR22

    Battery life without power

    10 years

    10 years

    Dimension

    160mmx112mmx71mm

    290mmx170mmx85mm

    Weight

    Approximate 0.7kg

    Approximate 3kg
