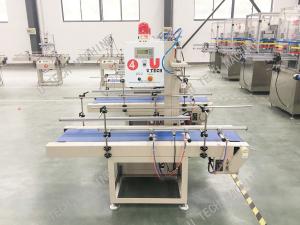

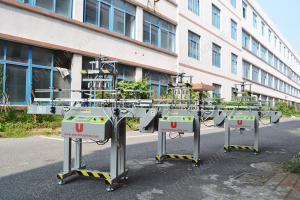

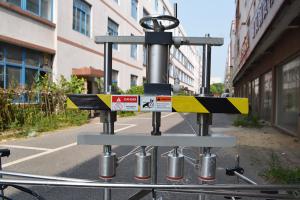

PE plastic bottle leak testing machine / leak tester machine
Introduction
Leak tester is designed for plastic bottles or containers leak
testing Bottle Leak Testing Machine will check the bottlers whether
it will leak or not. There will be an auto-rejection system for
leaked bottles. This system can be online with eminence make bottle
unscrambler or bottle de-flasher machine.
Products Character
1. Operates easily: one-botton leaking tests automatically, the
text demonstrats leak testing information, the defective products
reject the production line automatically.
2. Constructs firmly: The steel plate works fuselage, the
fluctuation place unifies the guide pillar and the lead screw.
3. The leak testing precision is high, the speed is quick: using
the high accuracy digital pressure sensing index error is to press
the leak testing, the laser probe head.
4. The price advantage: our leak testing machine is considered
today on the field of plastic container for leak testing amchine
most to have the performance-to-price ratio, obtained the test and
confirmation from the global customers in the past several years.
Technical Parameters
Model | BST-1 |
The power of Motor | 90W/220V |
The speed of Transportation tape(rice/second) | 0-15 |
The speed of the leak testing (only/hour) working speed | 0-1L | 3200 |
1-2L | 2800 |
3-5L | 200 |
5-8L | 1600 |
8-15L | 1200 |
10-80L |
|
The maximum outer diameter of observable bottle's mouth(mm) is
removable | 65 |
The extreme breadth of observable bottle(mm) | 160 |
The most greatly highly of observable bottle(mm) | 400 |
The greatest volume of observable bottle(L) | 8 |
Air pressure(Mpa/cm2) | 0.5 |
Total power consumption(w) | 110 |
Weight (kg) only |
|
External dimensions L*W*H(M) packing case is empty | 1.65*0.6*1.65 |
Company Profile
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling
machine and packing with well-equipped testing facilities and
strong technical force. With a wide range, good quality, reasonable
prices and stylish designs, our products are extensively used in
beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit
juice/tea, carbonated drink, oil, alcohol, plant protein drink,
etc.), barreled filling line (3-5 gallon) water treatment machines,
labeling & packing machines, semi-automatic /full automatic PET
bottle blowing machines, and injection molding machines, extrusion
blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for
automation: leak tester machines, bottle bag packing machines,
conveyor belts.
Our services
Before order service
We will according to your requirement make details quotation for
you.
We can send you some our machine running video similar to your
product.
If you come to china,we can pick you up from airport or station
near our city.
After order service
We will start to make machine,and take some picture by 10 days of
our production process.
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.
After-sales service
We will testing machine ,and take some video and picture to you if
u not come to china inspect machine.
After testing machine we will packing machine ,and delievery
container on time.
We can send our engineer to you country help you install and
testing machine.we can training you technical until they can
running machine independent.
Our company will give you all machine with 2 years guarantee.in 2
years you can get all spare parts free from us.we can send you by
express.
