    Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time

    Ask Lasest Price
    Brand Name : MINZEN
    Model Number : MZ-K2-320
    Certification : CE/ISO9001:2008
    Price : Price negotiation.
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month.
    Delivery Time : 30 work days.
    • Product Details
    • Company Profile

    Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time

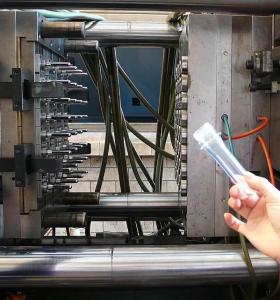

    PET minieral water preform bottle injection molding machine in 20 sec cycle time


    According to the material property of PET and the molding requirements of it,our experienced engineering team design the machine special for the application.The design satisfies all our customers in PET molding production.

    1. Big diameter screw design and Bigger L/D ratio
    2. High plasticization capacity
    3. Entended machine framework,enlarged space between tie-bars,mold opening stroke,mould thickness and ejection stroke
    4. Specialized screw set for PET+FB or slice PET are on request as option
    5. Four or above stages precise temperature PID control for barrel
    6. Spring nozzle for the machine below 650ton,hydraulic nozzle for 650ton,meeting customer’s special requirements by effectively avoid overflow
    7. Dehumidifying dryer selected for PET resin’s special demands of removing moisture
    8. Suitable for both variable pump and servo system

    SPECIFICATIONS


    SPECIFICATIONS
    DESCRIPTIONUNITK2-320
    INJECTIONABC
    SHOT VOLUMECM3106212311414
    SHOT WEIGHTG96611201286
    (PS)OZ33.739.244.9
    SCREW DIAMETERMM657075
    INJECTION PRESSUREMPA175152133
    SCREW L:D RATIO21:121:119.6:1
    SCREW STROKEMM320
    SCREW SPEED (STEPLESS)R/MIN0~150
    CLAMPING UNIT
    CLAMPING FORCEKN3200
    OPENING STROKEMM615
    PLATEN SIZEMM*MM945*945
    SPACE BETWEEN TIE BARSMM*MM660*660
    MOLD THICKNESS (MIN-MAX)MM250~670
    MAX.DAYLIGHTMM1285
    HYDRAULIC EJECTION STROKEMM160
    HYDRAULIC EJECTION FORCEKN77
    POWER UNIT
    HYDRAULIC SYSTEM PRESSUREMPA17.5/36.7
    PUMP MOTOR(V/S)KW30/36.7
    HEATING CAPACITYKW21.5
    NUMBER OF TEMP CONTROL ZONES5+(NOZZLE )
    GENERAL
    DRY-CYCLE TIMESEC5
    OIL TANK CAPACITYL500
    MACHINE DIMENSIONSMXMXM6.8*1.6*2.2
    MACHINE WEIGHTKG13000
