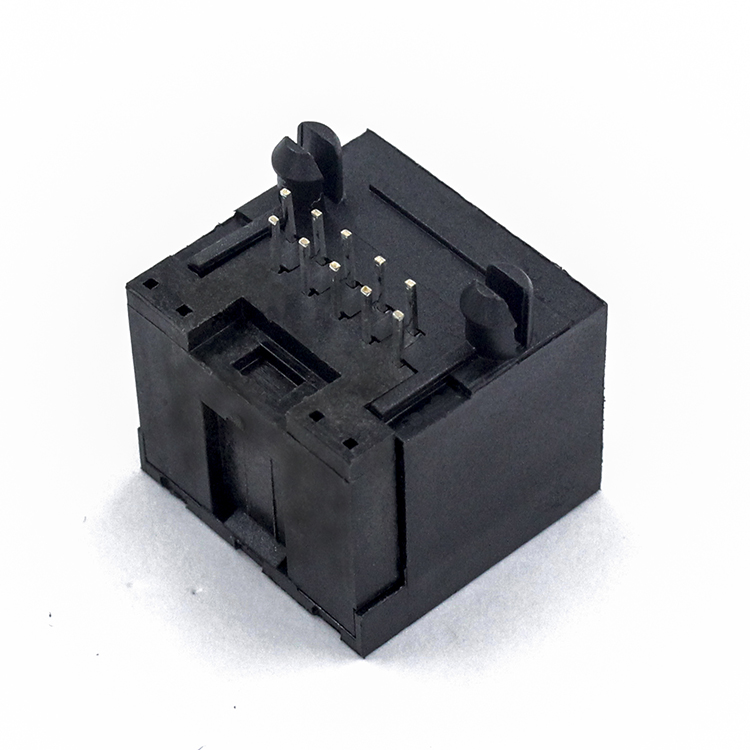

Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41

    Buy cheap Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41 from wholesalers

    Buy cheap Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41 from wholesalers
    • Buy cheap Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41 from wholesalers
    • Buy cheap Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41 from wholesalers
    • Buy cheap Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41 from wholesalers

    Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41

    Ask Lasest Price
    Brand Name : TM
    Model Number : TM55T011EXX41
    Certification : UL,Rohs,Reach,ISO9001
    Price : Supportive
    Payment Terms : T/T, Western Union, ,Paypal
    Supply Ability : 500K/year
    Delivery Time : 20Days
    • Product Details
    • Company Profile

    Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41

    Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41


    Materials:
    Housing : PBT,UL94V-0 ( RoHS )
    Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
    Shielding Shell: NO
    All materials mates with modulat plug conforming to FCC part 68. subpart F.


    Product Structure:
    RJ45 Jack
    1 x 1 Port / Single Port / One Port
    Latch Down
    Connector Length: 15.15 mm
    Connector Width: 15.91 mm
    Connector Height: 13.15 mm
    Termimal Solder Pin Length: 2.62 mm
    10P10C ( 10 positions 10 contacts )
    90°Orientation
    Without LED, let know the connection status
    Without Shield,can be customized as required
    We Support Custom service as required


    RJ45 Without Transformer (TM55T011EXX41) Attributes:


    Model:TM55T011EXX41
    Place of Origin:Guangdong of China
    Certification:UL,Rohs,Reach,ISO9001
    Product Type :RJ45 Modular Connector
    Jack Type:RJ45
    Number of Positions :10
    Terminals per Port:10
    LED Option:No
    Shielded EMI Tabs:No
    Voltage rating:125 V
    Current rating:1.5 A
    Contact resistance:30mΩ
    Insulation resistance:500 MIN @ 500V DC
    Dielectric resistance:1000V AC RMS 50Hz. 1MIN
    Durrability:750 CYCLES MIN
    Minimal Order:1pcs
    Package:90pcs/tray,2340pcs/carton
    Delivery Time:20 Days
    Supply Ability:5KK/year

    RJ45 Female Connector (TM55T011EXX41) Mechnical Drawing:
