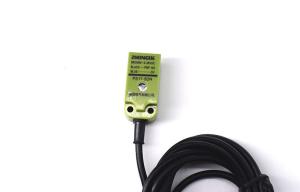

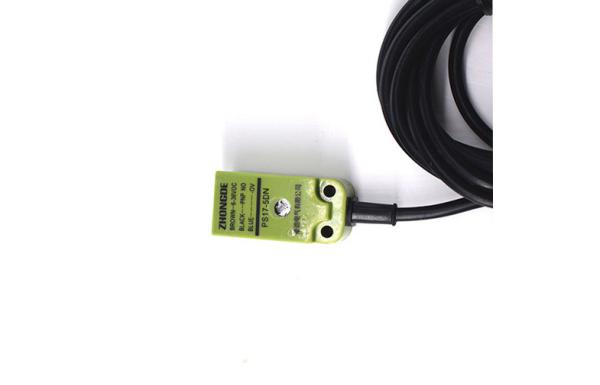

Normally Open Non Contact Safety Switch NPN DC Wide Voltage Range
Description
Safety Proximity Switch is a non-contact proximity sensor. It is
used for positioning and detection of metal objects. The sensing
range of an inductive switch is dependent on the type of metal
being detected.
Details
Three-wire
NPN
Normally open
DC
Features
Reverse power protection, short circuit protection, can be directly
connected to the PLC
Economical and simple operation
Long life and high reliability, strong environmental resistance
Red LED reality can detect sensor working status
IP67 protection structure (IEC)
Parameter
| Lag distance | Less than 10% of the detection distance |
| Detecting objects | Magnetic metal (detection distance is reduced when non-magnetic
metal) |
| voltage | DC : DC 12~24 (6~36V) pulse (p-p) below 10% |
| AC : AC 110~220V (36~250V) 50/60Hz |
| Current consumption | N.P : ≤13mA |
| D : ≤0.8mA |
| A : ≤1.7mA |
| Control output | N.P : ≤300mA |
| D : ≤200mA |
| A : ≤400mA |
| Loop protection | N.P.D : reverse connection protection, surge absorption, load short
circuit protection |
| A : surge absorption |
| Ambient temperature | -30~+65°C (no icing, no condensation) |
| Ambient humidity | -35~95%RH |
| Insulation resistance | 50MΩ or more (DC500 megohmmeter) (between charging part and
housing) |
| Withstand voltage | AC 1000V 50/60HZ 1min (between charging part and Housing) |
| Temperature effect | -30~+65°C: detection distance error ±15% at +23°C |
| -25~+60°C: detection distance error ±10% at +23°C |
| Voltage effect | 6-36V (90-250V) : ±15% of detection distance error |
| 10-30V (220V) : ±10% of detection distance error |
| Protection level | IP67 (IEC) |
| Material | Housing: ABS |
| Detection surface: ABS |
Note:Please read the "Precautions" of the product manual before
use.
