Light Display Air Pressure Adjustable Chip Mounter Nozzle Cleaner
with Tray
Introduction
HS-800 nozzle cleaning machine can automatically complete the
cleaning and drying process, it adopts multiple spraying nozzles
spraying cleaning method, uses fluid mechanics to shred water,
produces very strong water mist, forms powerful kinetic energy at
the speed of sound and sprays on the nozzle, forming a continuous
shape above the nozzle, clean the dirty on the surface and inside
of the nozzles, it mainly used for cleaning small components, such
as 0603,0402,0201,01005 and high precision nozzles.
Product Features
1, Elegant appearance, high precision 304 stainless steel machine
body.
2, Max can clean 30 pcs nozzles at one time, achieve high
efficiency and energy saving.
3, Suitable for cleaning all kinds of nozzles, also have good
cleaning performance for cross type, I-shaped, and special shape
nozzles.
4, The atomized water flow equipped with supersonic spraying
cleaning to completely clean the dirt impurities which the
ultrasonic waves can not clean it all, ensure the clearness even
very small nozzle holes.
5, Easy operation, English is available.
6, Inspection window which can watch the whole cleaning process.
7, Using D.I water as cleaning solvent,not harmful for all types of
nozzles and reflector panel.
8, Touch screen + PLC distributed control, stable and reliable
performance
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |

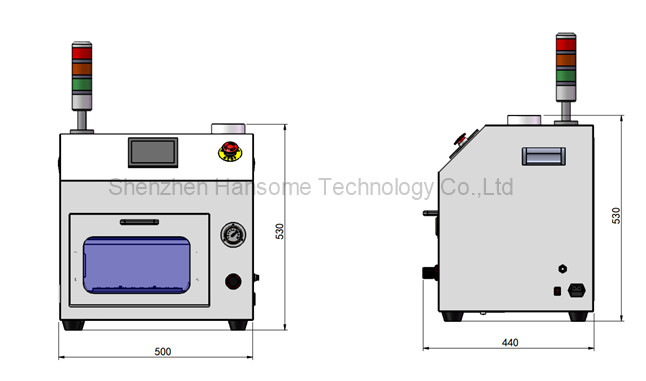

Machine size
Nozzle Tray
