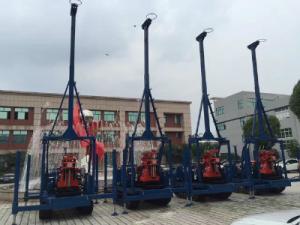

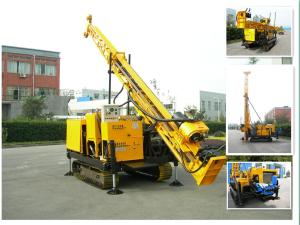

Small Drill Machine Core Drill Rig Crawler Mounted 100 Meters Easy
Operation
1. GXY crawler mounted series drilling rig are mostly applied for
drilling in engineering geological exploration, survey and
exploration of solid mineral deposit, inspecting hole of various
concrete structure, etc.it is also could for explore coal mine and
small water well.
2. GXYseries drilling rig has two kinds of systems:mechnical and
hydraulic,they are with compact structure,in a light weight so can be used in
small areas and mountains.
3. If match with crawler mounted,you can put the pump and all other
like tower together in it.
4. According to vairous layers, the drilling bit of core drilling machine can be types of
tungsten carbide, steel grit, spiral, etc. And the trough-hole of
ve rtical shaft is 8mm.
| Type | GXY-1,1A,1B,1C,1D |
| Hole depth | 50-150m |
| Hole diameter | 150-75mm |
| Diameter of drill rods | Φ43/42mm |
| Drilling angle | 360° |
| Power head output speed | Forward: 61/163/338/654 r/min Reverse: 45 r/min |
| Stroke | 500mm |
| Spindle feed force | 20kN |
| Spindle lifting capacity | 25kN |
| Hoist lifting capacity | 15kN |
| Hoist lifting speed | 0.22/0.95/1.95/5.3 m/s |
| Diesel engine | 13kW,2200 r/min |
| Motor | 11kW,1500 r/min |
| Dimension(L*W*H) | 1980×970×1400mm |
| Weight(without power unit) | 650KG |
1. The rig and water pump is seperated, drilling rig is equipped
with a separate power, can improve the output torque of the drill,
especially the pump lose power in the deep hole, avoiding accidents in the hole.
2. 53x59 drilling rod adopted,high rigidity and strong delivery
torque.
3. Equipped with mud pump with flow 160L/min,save cost and also
make the structure compact.
4. The drill is convenient for maintenance and repair for simple
structure and reasonable layout.
5. Rig high input power and output torque, drilling ability.
