    P5 LED Shopping Mall Advertisement RGB SMD LED Module 1/16 Scan Type 40000 Pixel / ㎡ Shenzhen Factory

    Ask Lasest Price
    Brand Name : Smart LED
    Model Number : P5
    Certification : CE,ROSH,FCC,EMC
    Payment Terms : T/T
    Supply Ability : no requirement
    Delivery Time : 2-3 Days
    • Product Details
    • Company Profile

    P5 LED Shopping Mall Advertisement RGB SMD LED Module 1/16 Scan Type 40000 Pixel / ㎡ Shenzhen Factory

    P5 320mm*160mm SMART DIY LED Module -Easy install Play video ,Text,Photo 2Years Guarantee

    Applications
    P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m

    Product Features
    * Cabinet Install to the wall,Module magnet service
    * Used LED Processor can open 2 windows on the LED Display.
    * Power supply and Controller service from the front side.


    What we can do

    * Project advise,Make the easy project design,easy for install and service

    * Free on-line support

    * We will send the setting file send with the goods. And also we will keep the Project file.

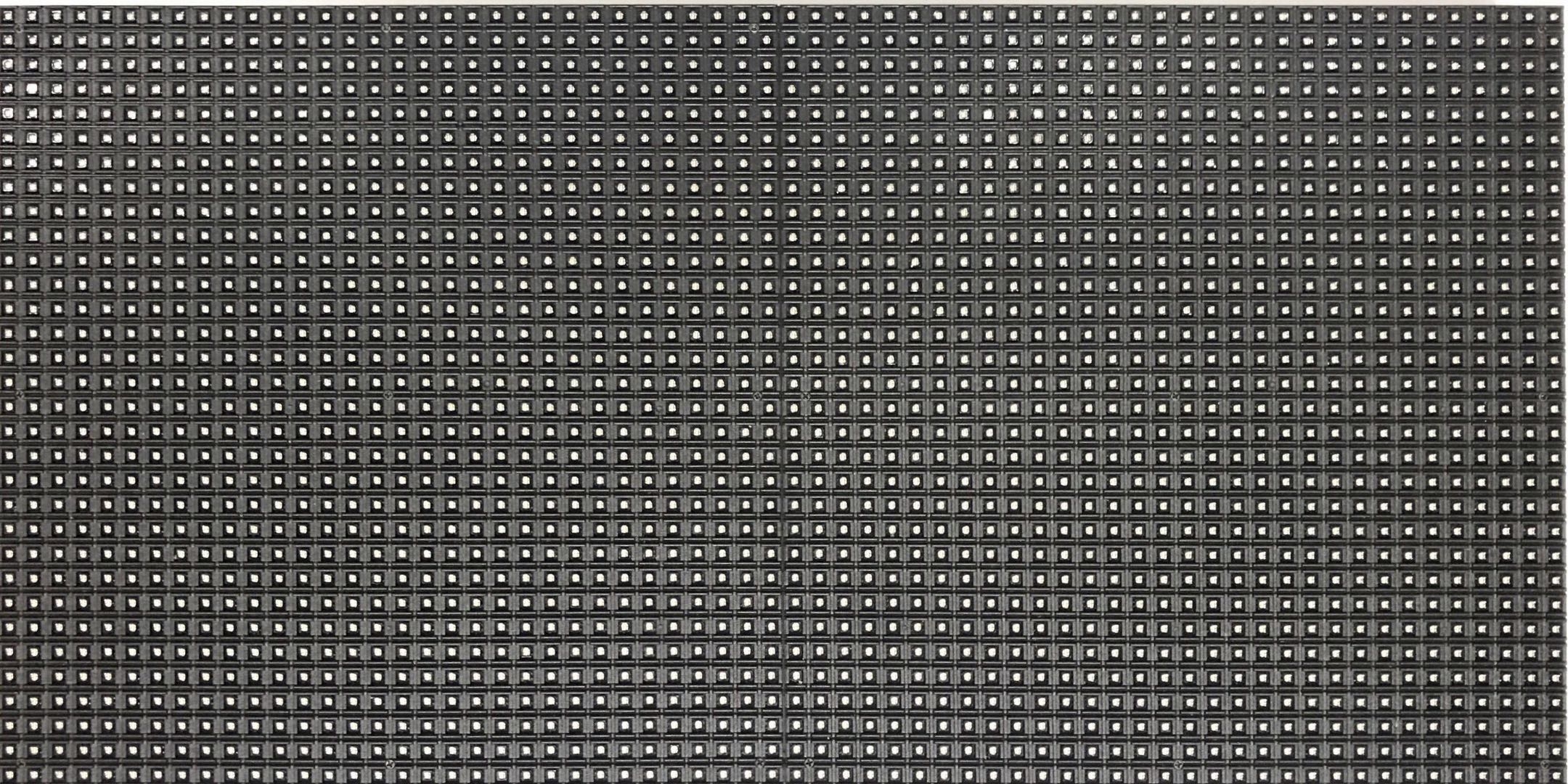

    P5 SMD indoor
    Description:
    Size: 320mm*160mm
    Resolution: 64dots*32dots
    Lamp: SMD 2020
    Driving Method: 1/16 Scan
    Module brightness:1000mcd
    Display Fresh requency: 1920Hz
    Working environment: Indoor
    Parameter:

    Pixel pitch5 mm
    LED Lamp type3in1RGB 2020
    Module size320mmx160mm
    Pixels Density40000 pixel/㎡
    Brightness1000cd/㎡
    Scan type1/16 Scan
    Frame Rata60HZ
    Maximum consumption700W/㎡
    Ave power consumption250W/㎡
    Led module weight9.18kg/㎡
    Led display weight(Die-case)28kg/㎡
    Working Temp-20℃ to +60℃
    Horizontal View Angel140degree
    IP gradeIP33
    Cabinet suggest640*640mm/960*960mm




    Module Dimensions:


    Production line







    Packaging and shipping
    Packing:1.Paper box packing and Water proof packing
    Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.



    Web:

    WWW.LEDLCS.COM

    www.ledvideo-screen.com
