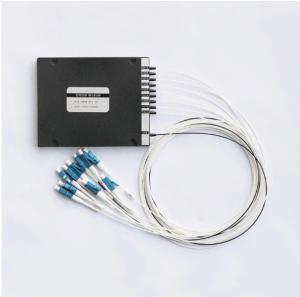

8CH 5G CWDM DWDM Mux And Demux AWG ABS Module Passive WDM CATV System UPC Polish

5G CWDM DWDM Mux And Demux AWG ABS Module Passive WDM CATV System 8CH

Product Description

WDM Optical Network
Wavelength Division Multiplexing (WDM) is a technology which multiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e., colors) of laser light. This technique enables bidirectional communications over one strand of fiber, as well as multiplication of capacity. Powerlink, backed by China factories, supplies a complete series of WDM Optical Network Solutions, such as multiplexers, splitters, amplifiers, attenuators, transceivers and other active or passive optical components. We provide the best products to help build and expand fiber optic networks. Customers can buy these products directly from categories below or Make Customized Orders.
WDM optical networks need multiplexer (MUX) and demultiplexer (DEMUX) to combine and split the multi-wavelength optical signals. The MUX is used to join signals together at the transmitter, while the DEMUX) is used to split signals apart at the receiver. CWDM networks use CWDM modules such as CWDM MUX/DEMUX and CWDM OADM. DWDM networks use DWDM modules such as DWDM MUX/DEMUX and DWDM OADM. Powerlink provides a series of WDM modules which enable the expansion of existing fiber capacity. Our CWDM DWDM OADM modules are available with three packagings: ABS Pigtail Module, Rack Chassis and LGX Cassette.

CWDM MUX DEMUX
Coarse Wavelength Division Multiplexing (CWDM) networks need multiplexer/demultiplexer (MUX/DEMUX) modules to combine and split the multi-wavelength optical signals. These modules are generally called CWDM MUX/DEMUX. Coupled with highly reliable passive optics (e.g., CWDM SFP/SFP+), CWDM MUX/DEMUX modlues let operators make full use of available fiber bandwidth in local loop and enterprise architectures. Powerlink provides a series of CWDM MUX/DEMUX modules with as more as 18 channels (20nm spaced) in simplex or duplex configurations. All the CWDM modules are available with three types of packaging: ABS Pigtailed Box, Rack Chassis and LGX Cassette.

Duplex CWDM MUX & DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over two fibers.
Powerlink CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
Powerlink provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Item Details

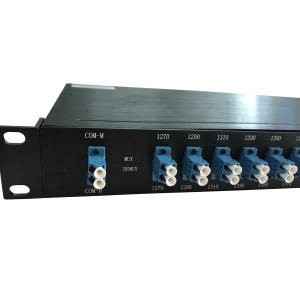

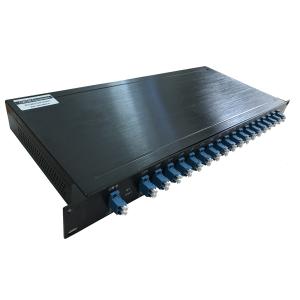

. CWDM mux and demux in one 1U Rack.
. Com port is duplex.
. 1U 19 inch Rack Mount Housing.
. It is equipped with configuration ports like Monitor, Express port according to customer choice (see options).
. Front panel is equipped with adapters according to customer choice (see options).
. Passive, no electric power required. (MTBF ca. 500 years).
. Insertion loss: 6dB.
. Simple to install, requires no configuration or maintenance.
. ISO 9001 manufacturing facility.

Application

Metro/Access networks
WDM system
Fiber optical amplifier
CATV system

Parameter

Product Pictures

   Founded in 2008, Shenzhen Wangtong Industry Co.,Ltd is a high-tech private-run enterprise specialized in research development ,manufacturing customized fiber optic network communication, Optic Active & Passive products. We are mainly manufacture Optical Fiber Transmission, Data Communication and Network Access Equipments. Products including: GEPON ONU, GPON ONT, GEPON OLT, GPON OLT. Wavelength division multiplexer(CWDM/DWDM/FWDM). Fiber optical patch cord, FBT coupler, PLC splitter. EDFA, optical receiver and optical internal & external transmitter. SFP fiber optic transceiver, media converter, ethernet switch, POE switch & reverse POE switch. ODF, fiber optic splice enclosure, Fiber optic patch panel, terminal box, fiber cable, tool kits and other passive components. These products are widely applied to over 30 industries like telecommunication, Internet, broadcast & television, finance, traffic safety protection, computer, campus network, safe city Surveillance, International Airports, Highway and public security.

   Wangtong actively introduced advanced production and inspection equipment, and adopts advanced production technology. Wangtong had already passed the international standard organization audition. Such as ISO9001: 2000, ROHS, CE,UL,SGS Approval. Our products have already been exported to Europe, America, Middle Asia, India, Asia , South & north America, Middle East, Southeast Asia, Northwest Africa, Hong Kong, Taiwan, Macao and other 57 countries and regions. Its reliable and well performance won us positive feedback from customers at home and abroad.

   As one of the famous manufacturers in China, we provide high-end products with excellent quality to the world. We have developed worldwide sales of fiber optic communication network products and cooperate closely with our customers.

   Wangtong is well-known for its reliable, high quality, the best service and reasonable price. Customers are in the first place. Delivering the best value to customers is the mission of our company. Based on professional technology, differentiation feature and cost-effective advantage, we will always provide the top quality products and the best after-sale service to our customers. You are the most welcome to contact us to explore a wide range of promising business opportunities!
