    Gpon / Epon Onu Fiber Optic POE Switch FTTH 10/100/1000M 8port 1GE UPLINK+7GE RPOE Port

    Ask Lasest Price
    Brand Name : wangtong
    Model Number : mini network switch for gpon/epon onu
    Certification : ISO9001:2008,ROHS
    Price : $12-13 PC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 Pack/Packs per Day
    Delivery Time : 3 -10 working day(s) after payment received
    • Product Details
    • Company Profile

    Gpon / Epon Onu Fiber Optic POE Switch FTTH 10/100/1000M 8port 1GE UPLINK+7GE RPOE Port

    FTTH 10/100/1000M 8port 1GE UPLINK+7GE RPOE port mini network switch for gpon/epon onu


    Description


    The Reverse PoE Switch provides power and data from a single point, using both of Power over Ethernet (PoE) & Reverse Power supply over a single Cat-5 cable. The eight Fast Ethernet ports can be used for any 10/100 /1000 Mbps link and four of 1-8 port can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the Reverse PoE Switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.


    The affordably priced Reverse PoE Switch delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras or FTTH PON system . These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the Reverse PoE Switch is ideal for small business FTTH networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.



    Feature


    • IEEE 802.3af power or reveres power on up to 8 ports

    • Supply power to wireless access points and surveillance cameras and FTTH ONU over Cat-5 cabling

    • 8 10/100/1000 Mbps Ports with AutoUplink™

    • Supports PoE power up to 15.4W for each PoE port

    • Supports PoE power up to 130W for all PoE ports

    • Supports PoE IEEE 802.3af compliant PDs


    Application


    • FTTH PON system

    • HD monitor transmission and power supply

    • Wireless AP layout transmission and power supply

    • Network telephone transmission , intelligent house and home system

    • Intelligent transportation supervisory system (ITS)

    • High-speed Way supervisory/Tele-Communication System

    • Security protection system, TV medical treatment

    • Long-distance Muti-media Schooling, Campus monitoring

    • Long-distance broadcast television transmission system

    • High-building Security Protection, Military Tele-Com projects


    Parameter


    Product name

    PL-108RPS

    Product description

    8 port 1000M POE Enhanced fast type Ethernet switch

    Ic chips

    Realtek Industrial grade IC chips

    POE Function

    REVERSE port1~port8 VOL DC9-57V 45+ 78-

    Characteristic

    Each port POE signal indicator

    High quality metal case

    Curing isolation function

    Interrupt network loop function

    Stop broadcast storm

    DHCP conflict prevention

    Interface

    8port 10/100/1000 M- REVERSE POE

    (All ports support MDI/MDIX adaptive)

    1 port DC out 12V MAX 2A(5.5/2.1)

    Forwarding mode

    Store and forward

    network media

    10BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)

    100BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)

    Performance specification

    Bandwidth:1.6Gbps (Non blocking)
    network delay(10 to 100M bps):The maximum delay of less than 20 microseconds;MAC:2KB

    Compatible network protocols and standards

    IEEE 802.3i 10BASET

    IEEE 802.3u 100BASETX
    IEEE 802.3x Flow Control,

    IEEE 802.1Q VLAN bridge operation

    LEDs indicator

    Each port connection status, the working state of PoE system of the power indicator light

    Power support

    DCIN:9V-57V or DCOUT:12V MAX 2A

    Physical specifications

    160mm*70mm*26mm(L*W*H)

    Package size

    167mm*80mm*62mm(L*W*H)

    Environmental Standard

    Working temperature:0°~55°C
    Storage temperature:-20°~75°C
    Working humidity:10%~90%,No condensation
    Storage humidity:10%~95%,No condensation
    Working height:Altitude 3000 M Altitude(10,000ft)
    Storage height:3000M Altitude(10,000ft)

    Safety

    surge absorption

    weight

    0.5kg(+power cable)

    warranty

    1 years

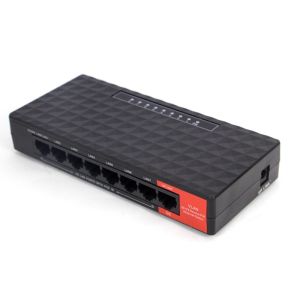

    Product Pictures
