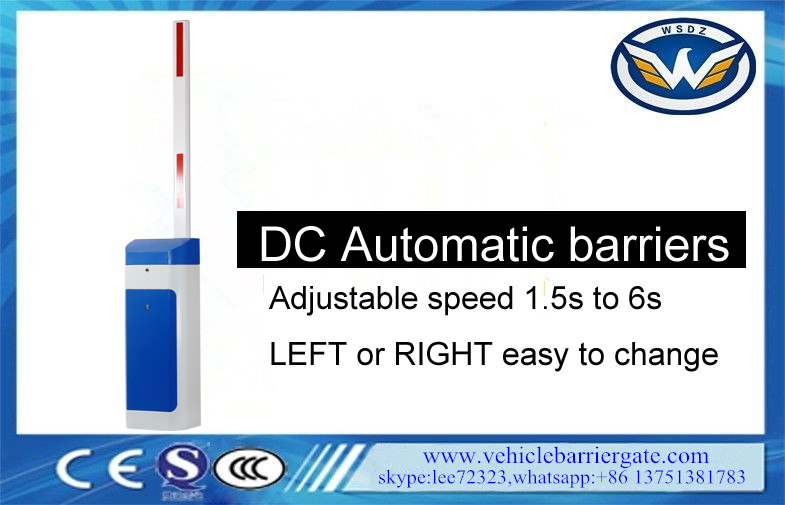

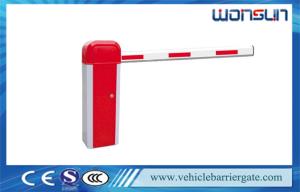

DC Motor Vehicle Barrier Gate barreras vehículo 6m Automático
Vehicle Barrier Gate Technical Data
| Vehicle Barrier Gate Working temperature(motor) | -35℃~+85℃ |
| Vehicle Barrier Gate Rated voltage | DC24V |
| Vehicle Barrier Gate Running speed | 1.5s-8s |
| Vehicle Barrier Gate Rated current | 8.58A |
| Vehicle Barrier Gate Rated power | 140W |
| Vehicle Barrier Gate No-load speed | 1850rpm |
| Vehicle Barrier Gate Rated speed | 1400rpm |
| Vehicle Barrier Gate Output Power | 56.8N.m |
| Vehicle Barrier Gate Relative humidity | ≤90% |
| Vehicle Barrier Gate Remote control distance | ≤100M(in the open place) |
| Vehicle Barrier Gate Max length of the arm | 6M |
| Vehicle Barrier Gate Product name | DC 1.5s-6s Speed Range Automatic Boom Barrier Folding Arm
Telescopic |
Vehicle Barrier Gate Features
1. Vehicle Barrier Gate Mechanical and electrical integration:
quick assembly, and easy maintenance. |
| 2. Vehicle Barrier Gate Molding production: high precision, fast efficiency, and guaranteed
quality. |
| 3. Vehicle Barrier Gate Worm-gear secondary variable speed transmission: motor wheel
design, gate opening manually when power off, no blocking, no oil
leakage, large torque, low noise, can normally operate at the
temperature of minus 45 degrees, etc. |
| 4. Vehicle Barrier Gate DC brushless motor design: low consumption, high efficiency, no
overheating, wide speed adjustment. |
| 5. Vehicle Barrier Gate Hall limit: Automatically detects the limit when power is on
without debugging, detecting the motor speed at all times and
running at constant speed. |
| 6. Vehicle Barrier Gate Curved triple connecting rod structure, easy to adjust |
| 7. Vehicle Barrier Gate Arm direction quickly interchanged: interchanged according to
different directions on the construction site, reducing inventory
and capital pressure. |
| 8. Vehicle Barrier Gate Special DC brushless controller: uses integrated chip drive, fast
processing speed, large memory, powerful function;24V low voltage
power supply, adapt to global voltage. |
Safe
Operation safety with position sensors, physical limiters, and
integrated photocell
Heavy duty
Vehicle Barrier Gate Consequent movements with 100% heavy duty
Precise
Vehicle Barrier Gate Smooth speed and movement control
Reliable
Vehicle Barrier Gate Easy installation with slotted mounting plate low service
requirement, and long product lifetime.
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and
pressure sensor.
2-How about the guarantee and after-sale service?
We have a 1-year quality guarantee, We own well-trained and
passional sales & aftersale services who can speak fluent English
language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special items, or need a custom design package or logo, need
3-10 working days longer.
4-How about the payment terms?
TT, Western Union, our company already joined the trade assurance,
it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship
by sea. You can also choose your own shipping forwarder. It
normally takes 7-60 days depending on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there are wooden crate
packages.
7-Can you do OEM service?
We offer below OEM services:
1)we can make a custom design turnstile, or if you tell us your
requirements, we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box
packing and other things.
8-Our services:
1. For all your inquiries about us or our products, we will reply
to you in detail within 24 hours.
2. We own well-trained and passional sales & after-sale services
who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products,
can customize the retail box packing, and other things.
4. We have very experienced engineers, who can help you better use
it.
