    NEW Nidec Control Techniques Commander SK-Keypad Remote 82100000013100STD Panel Mounting

    Ask Lasest Price
    Brand Name : Emerson CONTROL TECHNIQUES
    Model Number : SK-Keypad
    Certification : CE
    Price : Contact us
    Payment Terms : T/T / Paypal
    Supply Ability : 50
    Delivery Time : 2-3 work days
    • Product Details
    • Company Profile

    NEW Nidec Control Techniques Commander SK-Keypad Remote 82100000013100STD Panel Mounting

    NEW Nidec Control Techniques Commander SK-Keypad Remote 82100000013100STD Panel Mounting



    Description

    The SK-Keypad Remote is an inexpensive numeric LED display. The SK-Keypad Remote emulates the keypad of the drive and has the same user interface to show the status of the drive, and the value of the currently selected parameter. The Control Techniques 82100000013100 SK-Keypad Remote is a panel mounting IP65/NEMA 12 LED display. The keypad provides the same parameter access as the standard keypad but with an additional function key.


    The SK-Keypad Remote will assume 'RTU' master protocol. When connected to the RJ45 serial communications port of the drive the watchdog will automatically be enabled. If the communications are lost or disconnected the drive/keypad will trip SCL.


    The SK-Keypad Remote is connected to the drive by a straight-through shielded RJ45 to RJ45 cable, from the socket on the rear of the keypad to the RJ45 serial communications connection on the drive. For EMC compliance the cable shield should be clamped to the panel upon which the SK-Keypad Remote is mounted so that it makes a good electrical connection. The maximum cable length allowed is 30m (100ft).More information on serial communications and RJ45 pin configuration is available in the drive Advanced User Guide.


    SK-Keypad Remote use to Commander SK AC Inverter:
    SKA1100025SKA1100037SKB1100075SKB1100110SKA1200025SKA1200037SKA1200055
    SKBD200110SKBD200150SKCD200220SKDD200300SKD3200400SKB3400037SKB3400055
    SKB3400110SKB3400150SKB3400220SKB3400300SKB3400400SKB3400550SKB3400750
    SKA1200075SKB3400075SK3201SK3202SK4201SK4202SK4203
    SK2402SK2403SK2404SK3401SK3402SK3403SK4401
    SK4403SK5401SK5402SK6401SK6402SK3501SK3502
    SK3504SK3505SK3506SK3507SK4601SK4602SK4603
    SK4605SK4606SK5601SK5602SK6601SK6602SK6602
    SK2401SK4402SK2201SK2202SK2203SK3503SK4604

    Features


    Remote Mounting IP65 Keypad for use with Commander SK Inverters.
    Option for the Control Techniques Commander SK Range.

    • Start, Stop / Reset and Reverse keys for pushbutton control
    • IP65 certified
    • Powered from drive
    • Connection via standard RJ45 connectors and cable (not included)
    • Simple panel mounting using standard panel meter punch
    • High contrast, 2 line x 16 character back-lit LCD
    • Display any drive parameter in real units, using inbuilt scaling, offset and text
    • features
    • Multi-drop connectivity with any combination of drives
    • Password protected
    • 3 x programmable soft keys for macro functions

    Manufacturers part number is 82100000013100 SK-Keypad Remote

    (If you are looking for IP65 Inverter drives, we suggest using this keypad and mount the drive in a clean environment away from the dirty or washdown area).


    SP Drives
    SP1201SP1202SP1203SP1204SP2201SP2202SP2203SP3201
    SP3202SP4201SP4202SP4203SP5201SP5202SP3501SP3502
    SP0401SP0402SP0403SP0404SP0405SP1401SP1402SP1403
    SP1404SP1405SP1406SP2201SP2202SP2401SP2402SP2403
    SP2404SP3401SP3402SP3403SP4401SP4402SP4403SP5401
    SP5402SP5403SP6401SP6402SP3505ES2401ES2402ES2403
    SP3503SP3504SP3506SP4601SP4602SP4603SP4604SP4605
    SP4606SP5601SP5602SP6601SP6602ES3401ES3402ES3403
    UNI Drives:
    UNI1201UNI1202UNI1203UNI1204UNI1205UNI2201UNI2202UNI2203
    UNI3201UNI3202UNI3203UNI3204UNI1401UNI1402UNI1403UNI1404
    UNI1405UNI2401UNI2402UNI2403UNI3401UNI3402UNI3403UNI3404
    UNI3405UNI4401UNI4402UNI4403UNI4404UNI4405UNI5401SP5402

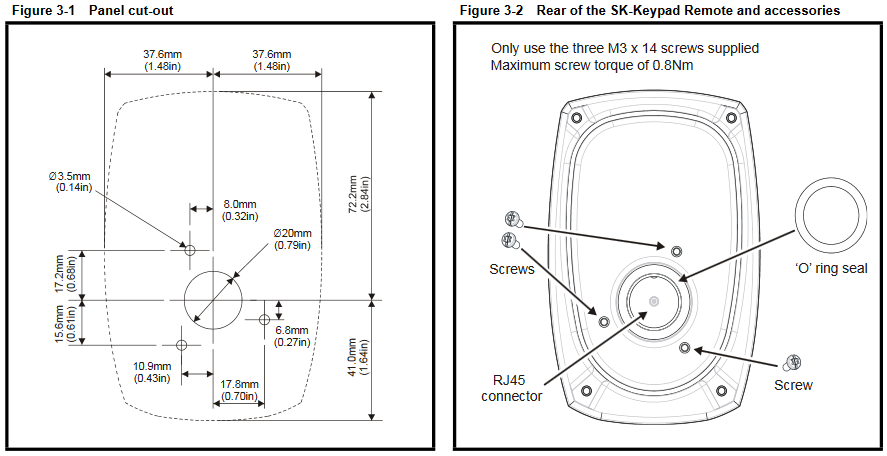

    Understanding the SK-Keypad Remote



    Figure
