    Packing Pressure Drop Compressive Strength Testing Machine Height Error ±10mm


    Packing Pressure Drop Compressive Strength Testing Machine Drop Height Error ±10mm

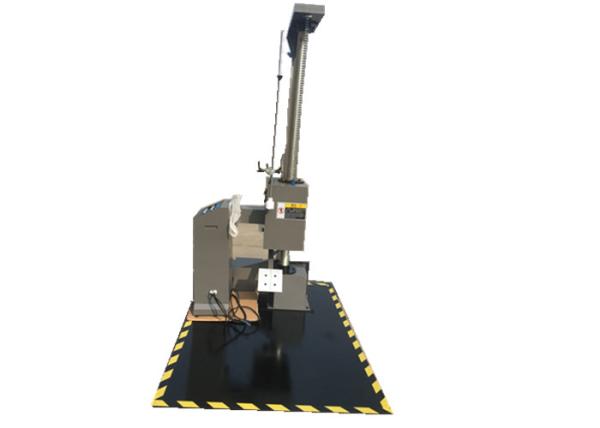

    Single arm drop tester JD-6001B-100


    Product Usage:


    Single-arm drop tester This machine is designed to test the damage of the product package from falling, and to evaluate the impact strength during transportation and handling. Applicable standards: ISO2248 JISZ0202-87 GB/T4857.5-92


    Machine features:


    The one-arm drop tester can perform a free drop test on the face, corner and edge of the package. It is equipped with a digital height display and a height tracking using a decoder to accurately give the product drop height and the preset drop height. The error is no more than 2% or 10MM. This machine adopts


    single-arm and double-column structure, with electric reset, electronically controlled drop and electric lifting device, which is easy to use; the unique cushioning device greatly improves the service life, stability and safety of the machine. One-arm setting for easy placement of the product.


    The main technical parameters:


    1, drop height mm: 300-1800 adjustable


    2, the maximum weight of the test piece kg: 0-100Kg;


    3. Thickness of the bottom plate: 10mm (solid iron plate)


    4, the largest size of the test piece mm: 1000 x 800 x 1000


    5, impact panel size mm: 1700 x 1200


    6, drop height error: ± 10mm


    7, test bench dimensions mm: about 1700 x 1200 x 2315


    8, net weight kg: about 300kg;


    9. Test method: face, angle, and ridge fall in all directions


    10. Control method: electric


    11. Drop height error: 1%


    12. Hit panel parallel error: ≤ 1 degree


    13. The angle between the falling surface and the horizontal angle of the falling surface: ≤1 degree


    14. Power: 380V1, power supply: AC380V 50HZ


    15. Power: 1.85KWA


    Machine studio environment requirements


    Temperature: 5 ° C ~ +28 ° C [1] (average temperature within 24 hours ≤ 28 ° C)


    Relative humidity: ≤85% RH


    Power supply conditions Three-phase four-wire + protective ground wire,


    Voltage range: AC (380 ± 38) V
