Electronic Adjustable Circuit Breaker With Material High Current Tripping Function

NBSe Electronic adjustable three phases MCCB 3 pole 125 amp electrical moulded case circuit breaker

1. Main functions and features

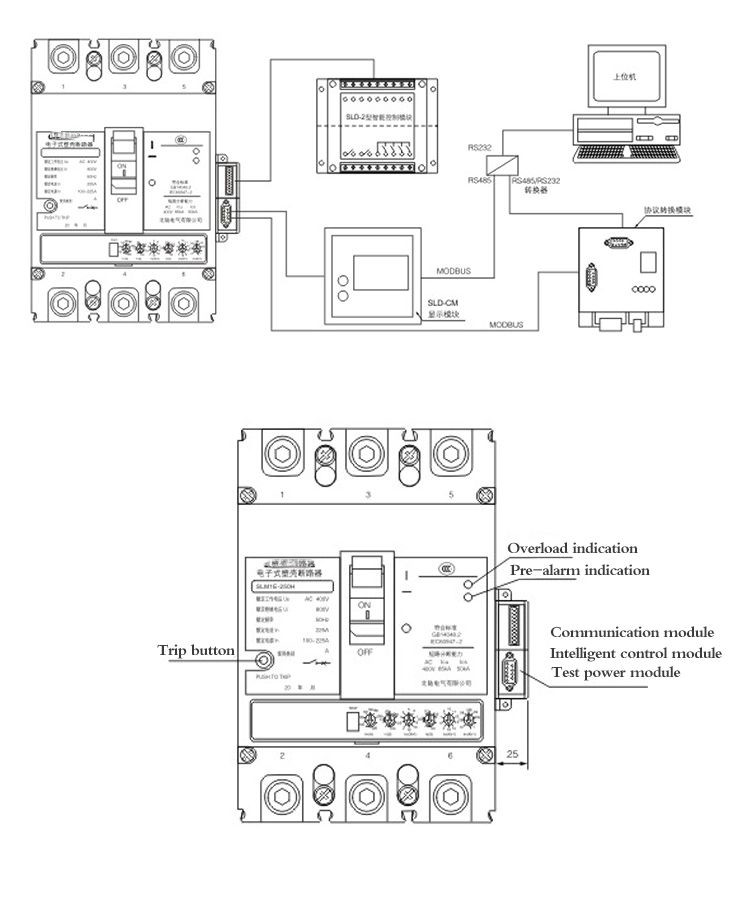

The intelligent controller is the core component of the molded case circuit breaker. It is applied to motor protection or distribution protection to realize the functions of measurement, protection, control and communication, so that the line and power supply equipment are protected from overload, short circuit and grounding.

With MCU microprocessor control, the performance is stable and reliable: the intelligent controller can supply power automatically, as long as one phase is energized, when the current is not lower than 20% of its rated value, the protection function can be guaranteed to work normally.
Selective fit with three-stage protection: use circuit breakers of category B and other short-circuit protection devices connected in the same circuit with selective coordination under short-circuit conditions: overload long delay inverse time limit, short circuit delay, short circuit transient, etc. Setting of protection function parameters

It has three sets of protection parameters for action current and action time. 4-10 steps can be adjusted: the user can adjust the settings according to the load current requirements, or select the function according to the user's requirements to turn off the corresponding function (customized function. Note when the user orders);

High-current instantaneous tripping function: When the circuit breaker is closed or during operation, if short-circuit high current (> 20 [nm) is encountered, the magnetic tripping mechanism of the circuit breaker can be tripped directly, and the double protection is more reliable and safe;
With trip test (test) function: input DC DC12V voltage test circuit breaker action characteristics;
Fault self-diagnosis function: protect and check the working status and running quiet condition of the intelligent controller itself;
High protection tip: overload protection, short-circuit short-delay protection action time accuracy t 10%; short-circuit instantaneous protection action value tip is 15% depending on the action current:

2. Technical Parameter

  The Company Is a Leading Supplier Of Electrical In China, founded in year of 1999, Specializing In LV Distribution & Motor Control,Inductrial Contros,Overvoltage protection, Switching devices and Other devices, Manufacturing, Operating And Marketing Into An Organic Whole. Some Our Main Hot Products Are As Miniature Circuit Breakers,Molded Case Circuit breakers,Residual Current Device, MCB,RCD,RCBO,MCCB,Surge Protector,Ac Contactors,Starter,Relay,etc.

  Our Company Invests Large Fund And Brains To Research Products To Fit The Demand Of The Market. High Level Research Group, Advanced Apparatus And Good Scientific Atmosphere Ensure The Stable And Reliable Quality, Most Of Our Products Conform To The Requirements Of IEC,EN,GB,BS,It Is Mainly Sold To Electrical Company And Distribution Company In Abroad, Such as Uk,Brazil,Mexico, Russia,Benin,Netherlands, South Africa, Iran ,Turkey,Thailand,Indonesia, And So On.

  NBSe's mission is: "Focus on the electric protection, serve the worldwide electrical." and our tenet is "hold integrity, forge ahead, serve the world." we are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, it's the way we win our customers and the market.

  New Blue Sky Elec possessing more than 70 domestic and international patents; all of our circuit breakers have passed CCC,CB,CE,EMC,TUV,ROHS,SNI,NOM and other international authoritative certifications. Our products use improvement of structure for circuit breaker (with invention patents); sharply increased the mcb electrical performance and lower the cost.After years of R & D work, our products have become the leader in circuit breaker field.
