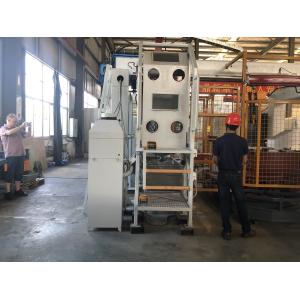

    Surface Polishing System CNC Polishing Machine Buffing Wheel Low Noise

    Ask Lasest Price
    Brand Name : DZ
    Model Number : CNC
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30sets/per month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Surface Polishing System CNC Polishing Machine Buffing Wheel Low Noise

    Surface Polishing System CNC Polishing Machine Buffing Wheel Low Noise

    Advanages:

    1. Surface polishing system cnc polishing machine for polishing, grinding, satin finishing and deburring of different parts from the sectors of aerospace, automotive, etc.

    2. Automatic double open fixture, 360 degree freely rotating fixture,polish without any blind side.

    3. Expanding to four polishing wheels and four work pieces can finish the four same processes simultaneously, which is a kind of high output machine type.

    4. Four-Shaft and Four-Work Piece CNC Polishing Machine is suitable for automating the polishing of parts with irregular configurations and complex shapes. The design and performance make it a machine of universal application with presence in multiple sectors, mainly the faucet and bathroom fitting industry.

    Main technical parameters:

    #ItemParameterRemarks
    1Size4400*3400*2900(L×W×H)Machine Cabinet Size
    2Power33KW
    3Rated Voltage380V 50Hz
    4Max. Polishing Mop Diameter600mm
    5Min. Polishing Mop Diameter400mm
    6X Axis Travel1100
    7Y Axis Travel900
    8Z Axis Travel700
    9U Axis Travel±60°
    10V Axis Travel±360°
    11W Axis Travel±360°
