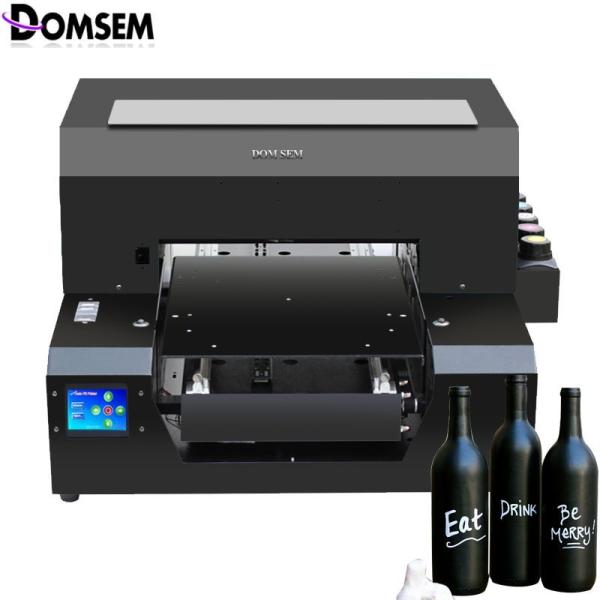

Low consumption A3 inkjet multifuntion printer high speed for
bottle Cylinder
A3 UV flatbed/Bottle printer is the ideal solution for DIY
Customied printing on the products, which is a multi-functional LED
UV flatbed printer that created by DOMSEM and was built with
industrial configuration as thicken aluminum profile, water
cyculation cooling system. Automatic detect UV curing system, 6
colors and max 2880 dpi printing resolution. Can print on all kinds
of surfaces, available in 3D textured and raised printing, suitable
for printing on both rigid and flexible material, like phone cases,
metal (aluminum, copper etc), alloys, mirror, gifts packaging
(wood, carbon paper, metal), tablet cover, DVD disc, plastic card,
PVC, glass, wood, paper etc.
| Specifications | Multi-functional Printer uv flatbed |
| Print head | Original from Epson 1390 |
| Print direction | Unidirection/ Bidirection |
| Print Size | A3 420*300mm |
| Print Resolution | 2880*1440dpi/ 1440*1440dpi |
| Rotary tray | included |
| Print Color | 6 colors (CMYK+WW) leather printer |
| Max.Media thickness | 15cm water bottle printer /20cm for flat objects |
| Max.Media weight | 10kg leather printer machine |
| Printing interface | Hi-speed USB 2.0 |
| Printing software | AcroRip9.03 |
| Computer System | All windows system |
| Ink type | Rigid UV curing ink or soft UV curing ink |
| Ink certification | SGS certification |
| Ink Color | 6 Colors (CMYK+WW) |
| Ink System | Continuous ink supply system |
| Dry system | UV LED instant system |
| UV LED wave length | 395nm UV inkjet Flatbed Printer |
| UV LED lifespan | 50000hours |
| Printing Precision | small then 0.1mm |
| Cool system | Water circulation |
| Print Head Height | Automatic Adjustment |
| Control | LCD touch screen control panel |
| Printer Dimension | L75*W63.5*H67cm |
| Net weight | 65kg Metal printer |
| Gross weight | 82kg copper printer |
| Packing size | L85*W78*H57cm |
| Power consumption | 200Watt |
| Work Voltage | AC100-240V 50-60hZ |
DOMSEM' proprietary new technologies:
-Automatic Printhead height adjustment
-Intelligent scratch resistance system
-Unique lateral loading platform design
-Control on Demand system
-Safe water cooling control system
-Ink dry instant UV LED System.
-Continuous ink supply system
-HIS system
Main Features:
1-Easy Operation:
Unique lateral loading platform design, Control on Demand system.
2-Maximize your productivity
3-High Printing Precision:
Automatic detect the X (carriage), Y (flatbed) motion pulse and
send back the real motion data to the main-board for interpolating.
Combine with the closed-loop structure circuit design to enhance
the stability of the system and ensure the flatbed printing with
one pass printing precision and repeat printing precision.
