Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve

Name: Easy Install Orbit Hydraulic Motor BMR Hydraulic Motor With Spool Valve
Brand: RENOWELL
Price: 1 USD

Ask Lasest Price
Model Number :	BMR Series
Brand Name :	RENOWELL
Supply Ability :	50000 Piece/Pieces per Month
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve

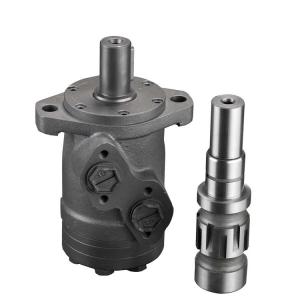

BMR Orbit Hydraulic Motor With Spool Valve

Product Description

This series of motor,with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics, machine tools and min machines, such as the mould height adjustment of the injection molding machine, the cleaner, the saw the worktable etc.

Features

1 The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.

2 With the axial oil distribution structur, it is of smaller size and less weight.

3 With two inner check valves, no drain connection.
4 With cycoid group with the roller, it has a small friction nd high mechanical efficiency.

Model Designation

TYPE		BMR-50 BMRW-50 BMRS-50	BMR-80 BMRW-80 BMRS-80	BMR-100 BMRW-100 BMRS-100	BMR-125 BMRW-125 BMRS-125	BMR-160 BMRW-160 BMRS-160	BMR-200 BMRW-200 BMRS-200	BMR-250 BMRW-250 BMRS-250	BMR-315 BMRW-315 BMRS-315	BMR-400 BMRW-400 BMRS-400
Flow (ml/r) Displacement		51.7	80.5	100.5	126.3	160.8	200.9	252.6	321.5	401.9
Max.Pressure.Drop(Mpa)	cont.	14	14	14	14	14	14	11	9	7
	int.	17.5	17.5	17.5	17.5	17.5	17.5	14	11	9
	peak.	20	20	20	20	20	20	16	13	11
Max.Torque(N.m)	cont.	93	152	194	237	310	369	380	380	380
	int.	118	189	236	296	378	450	470	470	470
	peak.	135	216	270	338	433	509	540	540	540
Speed.Range(cont.)(r/min)		10-775	10-750	10-600	10-475	10-375	10-300	10-240	10-190	10-160
Max.Flow(cont.)(L/min)		40	60	60	60	60	60	60	60	60
Max.Output.Power(cont.)(Kw)		7	10	10	10	10	8	6	5	4
Weight(kg)		6.5	6.9	7.0	7.3	7.5	8.0	8.5	9.0	11

Company Information

Suzhou Renowell Hydraulic Pump Co.,Ltd specialize in research and development, production and sales of high-end hydraulic pump products. Our company is located in a long history and beautiful modern industrial city - Suzhou. It is about 2 hours drive from Shanghai Pudong International Airport and 45 minutes from Wuxi Shuofang Airport. The transportation is very convenient and location is very superior.

The main products of our company are: Dennison T6, T7 series vane pumps; Vickers V, VQ series, V10, V20 series vane pumps; Tokimec SQP series vane pumps; Yuken PV2R series hydraulic vane pumps; PGH4, PGH5 series gear pumps; high pressure piston pumps and parts. After detected by the authoritative state department, the performance, technical indicators of our products have reached or exceeded the similar products made by the domestic and foreign top manufacturers, and can be interchangeable, instead of imported original products. Lower noise, higher volume efficiency, longer life and reasonable price make our products have been praised by all of our domestic and overseas customers, now our products have been exported to five continents more than 30 countries and regions.
