Professional 3D Holographic Transparent Foil / Rear Projection Film
/ Holographic Film
1. High flatness
2. Fire retardant
3. All weather features like waterproof for outdoor use
4. 3D image can be imaged on both sides of imaging film/curtain
5. 180 degree viewing angle
6. Holographic projection screens have absolute advantages in color
reproduction, contrast, image clarity, and overall flatness.
7. Different imaging curtain can be seamless stitched or spliced
together to bigger image curtain.

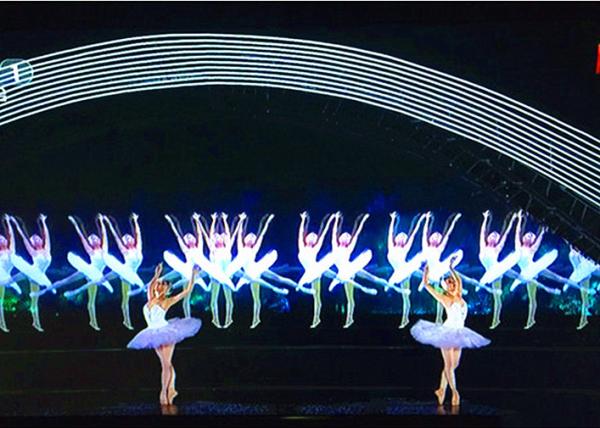

Maystar Naked-Eye Mega 3D Hologram as a revolutionary technology
with subversive significance, we can foresee that it has great
application value in many aspects. Can be widely used in 3D movies,
performances, exhibitions, museums, restaurants, interactive
entertainment, entertainment occasions, bar, KTV, window display,
glass curtain wall display, medicine, education,Concerts, Product
Launche Event, Weddings, KTV, Bars, Museums, Cinemas,
Exhibitions,Theaters, fitness halls, country clubs, clubs, massage
rooms, bars, cafes, Internet bars, beauty shops, golf
course,schools, Banks, negotiable securities, funds, insurance
companies, pawn shops and other fields.
Maystar Naked-Eye Mega 3D Hologram can be implemented in two types
systems:
Maystar Naked-Eye Mega 3D Hologram Film
& Maystar Naked-Eye Mega 3D Hologram Film Curtain
1. Maystar Naked-Eye Mega 3D Hologram Film
Maystar Naked-Eye Mega 3D Hologram Film can provide an aerial
dynamic display and clear visualization. At the same time, the
audience can see the back scene through the film, and can combine
with the interactive software to generate three stereoscopic
interactive images, so that the audience can be immersed, it has
advantage of high definition, glare, ultra-thin, anti-aging and
Transmittance exceeding 70%, and other unparalleled advantages.
Advantages: The projected image can be seen indoors and outdoors during
projection, and the pedestrians or passers-by can see indoor
objects or furnishings when not projected.
| Item | Holographic transparent film | Gray Rear projection film | High contrast fusion film | Front projection colorful projection film | Carbon black rear projection film | Honeycomb double-sided projection film | Mirror Film | Phantom reflection film | Phantom glass Film |
| Thickness | 100μm | 100μm | 120μm | 110μm | 100μm | 130μm | 80μm | 150μm | 600μm |
| Width | 1524mm | 1524mm | 1500mm | 1524mm | 1524mm | 1530mm | 1524mm | 8000mm | 2440mm |
| Length | 30m | 30m | 30m | 30m | 30m | 25m | 30m | N | 3.66m |
| Glue layer | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Transmittance | 89% | opaque/ not transparent | opaque/ not transparent | opaque/ not transparent | opaque/ not transparent | opaque/ not transparent | opaque/ not transparent | 95% | 86% |
| Perspective | 150° | 120° | 175° | 120° | 120° | 120° | 175 | 120 | 120 |
| Contrast | 350:1 | 500:01 | 2800:1 | 500:1 | 1200:1 | 1200:1 | / | / | / |
| Gain value | 0.9 | 1.2 | 0.6 | 1.5 | 0.9 | 1.1 | / | / | / |
| Projection method | Rear projection type | Rear projection type | Rear projection type | Front projection type | Rear projection type | Front projection type/ Rear projection type | / | Reflective type | Reflective type |
| Characteristics | High transparency | High definition | High contrast Wide viewing angle | High brightness | High contrast | High brightness | High reflection | High transparency High definition | Strong 3D sense |
| Application range | Window display / suitable for seeing through the opposite occasion | Indoor / can not be seen to see through the opposite situation | Indoor / can not be seen to see through the opposite situation | Indoor / can not be seen to see through the opposite situation | Indoor / can not be seen to see through the opposite situation | Indoor / can not be seen to see through the opposite situation | Indoor / can not be seen to see through the opposite situation | Stage, exhibition hall | Stage, exhibition hall |
2. Maystar Naked-Eye Mega 3D Hologram Curtain
Maystar Naked-Eye Mega 3D Hologram Curtain is a display form of
projection imaging by means of projection, spotlights, etc., and
its imaging is still inseparable from the solid imaging medium.
Generally, the curtains of common materials are not used as fixing
devices for displaying in performance venues, but the Mega 3D
Hologram Curtains are more suitable for displaying which is thin
and high-quality, such as glass fiber curtains, matte curtains, and
non-stretch white curtains.
The biggest advantage of the Mega 3D Hologram Curtain is the
variety of light transmission and use scenes. It ensures high-light
transmission while ensuring that the picture is still bright, the
color is saturated and suitable for more scenes.
Features:
1, the curtain color is optional
2, easy to install, easy to disassemble
3. The projection curtain is easy to store and foldable.
| Product | Width | Color | Length | Remark |
| (Korea) stretch white Curtain | 3m-12m | Transparent white | No-limited |
Non-stretch/Imported product |
| (Korea) Stretch black Curtain | 3m | Black | No-limited |
Non-stretch/Imported product |
| (Korea) Dazzling gray Curtain | 3m | Dazzling gray | No-limited |
Non-stretch/Imported product |
| (Korea) not transparent white Curtain | 3m | Not transparent white | No-limited |
Non-stretch/Imported product |
| (Korea) Non-stretch white Curtain | 5m | Transparent white | No-limited |
Non-stretch/Imported product |
| (Japan) glass fiber Curtain | 3m | Silver gray | No-limited | Imported product |
| (Korea) Matte Curtain | 3m | Black white gray | No-limited | Imported product |
